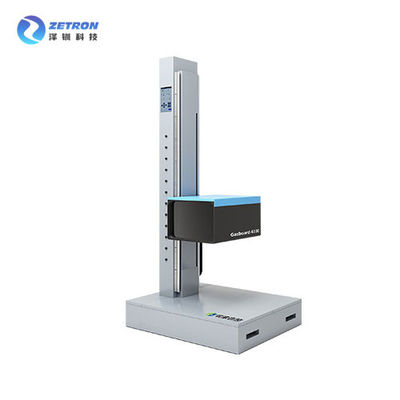

120000cd Gas Detector Accessories Automatic Headlight Tester 350mm - 1400mm AC220V 250W

  • 120000cd Gas Detector Accessories Automatic Headlight Tester 350mm - 1400mm AC220V 250W
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-6100
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Luminous Intensity (0~120000)cd Headlight Height (350~1400)mm
Temperature (-10~40)℃ Power AC220V, 250W
Weight About 100 Kg Size 800×670×1700 (length×width×height)
High Light

120000cd Gas Detector Accessories

,

AC220V Gas Detector Accessories

,

1400mm Automatic Headlight Tester
Leave a Message
Product Description

Vehicle Headlight Tester

OVERVIEW



Gasboard-6100 adopts dual-camera structure and precision optical system for light-seeking positioning and measurement analysis. Combined with digital image processing and motion control technology to form an intelligent measurement system.It completely meets the vehicles headlamp testing demand, such as halogen lamps, xenon lamps, LEDs and various lamp types, and suitable for motor vehicle safety technology/comprehensive performance testing line network testing, automobile manufacturer assembly (quality assurance) testing line and motor vehicle repairing department maintenance testing.
Gasboard-6100 complied with standards the requirement of GB 7258 "Technical Conditions for Safety of Motor Vehicle Operation", GB38900-2020 "Technical Inspection Items and Methods of Motor Vehicle Safety" and other relevant standards.



FEATURES



·Advanced optical system, detect various parameters of different types headlamps quickly and accurately.
·Designed with large-screen LCD display ensures easy operation.
·Automatic discrimination technology greatly eliminates external light interference, and ensures automatic tracking and high accuracy positioning.
·Equipped with high-performance embedded processor for data collection and analysis.
·Powerful software function ensures convenient calibration, and fault self-checking.
·Quickly disassembled and assembled realizes easy moving and accurate measurement.
·Reliable communication protocol to facilitate the original inspection system replaces the tester.


SPECIFICATION



Measurement Range
Luminous intensity (0~120000)cd
High beam optical axis offset Vertical direction: up 2°30’~ down 3°
Horizontal direction: left 3°~ right 3°
Low beam optical axis offset Vertical direction: up 2°30’~down 3°
Horizontal direction: left 3°~right 3°
Headlight height (350~1400)mm
Indication Error
Luminous intensity When the optical axis offset (angle) is zero, indication error ≤±10% (relative error)
When the optical axis offset value (angle) is any value within the verification range, indication error ≤±12%"
High beam optical axis offset Indication error: no more than ±3.2cm/dam (±10’)
Difference between indications: no more than ±3.2cm/dam(±10’)
Low beam optical axis offset Indication error: no more than ±3.2cm/dam (±10’)
Lamp height Indication error: no more than ±10mm
Working Condition
Environmental temperature (-10~40)℃
Power supply AC220V, 250W
Specification
Dimensions 800×670×1700 (length×width×height)
Weight About 100 kg




APPLICATION



Motor vehicle safety technology/comprehensive performance testing line network testing
Automobile factory assembly (quality assurance) testing line
Maintenance testing of motor vehicle repairing departments
