Zetron HSP12 Flue Gas Analyser Probe Tmax 1000 Degree Standard For Industrial Engines
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Sampling Probe | Model Number | PTM600-Bio |
|---|---|---|---|
| Function | Pressure & Temperature Function | Length | 1200mm Probe + 1000mm Cooling Hose |
| Detecting Gas | Flue Gas | Built-in Filter | Water & Dust Filter |
| Place Of Origin | Beijing, China | Warranty | 12 Months |
| Highlight | 1000 degree flue gas analyser probe,industrial engines flue gas analyser probe,1000 degree flue gas probe |
||
Product Description

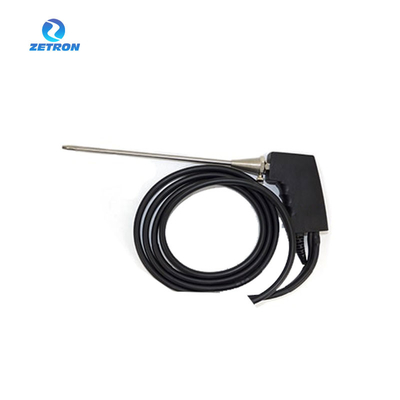

Sampling Probe 1200℃ for Flue Gas Analyzer
OVERVIEW
PTM600-FG flue gas detector can optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1200 ℃.
1200mm & 1000 ℃ probe, 1000mm cooling hose, with water & dust filter, with pressure & temperature function.
SPECIFICATION
|
Gases to be detected
|
Range
|
Accurancy
|
Resolution
|
Response time T90
|
|
Combustible gas ( EX )
|
0-100%LEL
|
＜±2%(F.S)
|
0.1%LEL
|
≤10 seconds
|
|
Methane ( CH4 )
|
0-100%Vol
|
＜±2%(F.S)
|
0.1%Vol
|
≤10 seconds
|
|
Oxygen gas ( O2 )
|
0-30%Vol
|
＜±2%(F.S)
|
0.01%Vol
|
≤10 seconds
|
|
Hydrogen sulfide ( H2S )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Sulfur dioxide ( SO2 )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Nitric oxide ( NO )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Ethylene oxide ( ETO )
|
0-100ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
|
Phosgene ( COCL2 )
|
0-1ppm
|
＜±2%(F.S)
|
0.001ppm
|
≤20 seconds
|
|
Silane ( SiH4 )
|
0-50ppm
|
＜±2%(F.S)
|
0.01ppm
|
≤30 seconds
|
APPLICATION SCENES
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
