ES10b Gas Detection Controller IP54 RS485 Signal Output Wall Mounted

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC-1000A
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Display 8 Inch TFT LCD Touch Screen
Power Supply AC220V±15%, 50Hz±1% Consumption ≤10W(according To Different Channels)
Output Voltage DC24V±15% Input Signal RS-485/ 4-20mA
Alarm Mode Audible, Visual Installation Mode Wall-mounted
Size 400mm*280mm*80mm Weight About 3.6kg
High Light

IP54 Gas Alarm Controller

,

RS485 Gas Detection Controller

,

ES10b Gas Detection Controller

You can tick the products you need and communicate with us in the message board.
Product name
Leave a Message
Product Description

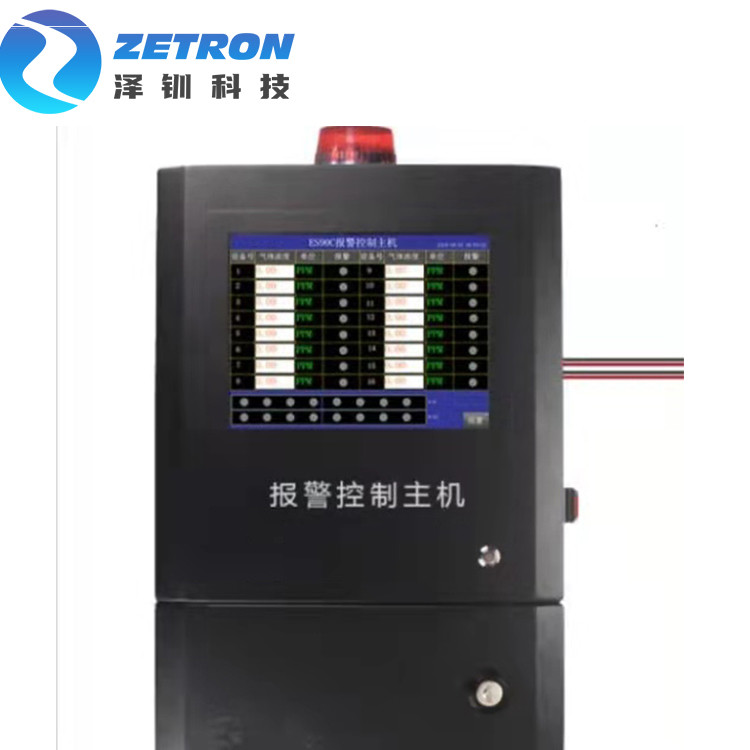

MIC-1000A Gas Detector Controller



OVERVIEW



With new design of Touchful screen, simple operation. It could connct the MIC1000A fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The MIC1000A Combustible Gas detector controller and MIC1000A is Alarm control main engine wireless it could guarantee the security of the industrial working place.



ES10b Gas Detection Controller IP54 RS485 Signal Output Wall Mounted 0



SPECIFICATION



Item Description
Product name Gas detection controller
Display 8 inch TFT LCD touch screen
Power supply AC220V±15%, 50Hz±1%
Consumption ≤10W(according to different channels)
Output voltage DC24V±15%
Input signal RS-485/ 4-20mA
Relay output 4 relay output with optional NO or NC / customized
Relay contact capacity 5A, 30VDC or 5A, 220VAC
Alarm mode Audible, visual
Installation mode Wall-mounted
Suitable gas detector ES10b Fixed gas detector with RS485 signal output
Gas detector quantity ≤64pc
Communication distance ≤2000m
Working temperature -10℃~+50℃
Working humidity 10~95%RH(Non-condensation)
Size 400mm*280mm*80mm
Weight About 3.6kg
Protection grade IP54
Quality standard GB 16808-2008 GB 15326-1994
Certificate CE, RoHS



FEATURES & BENEFITS



· Advance micro-processing technology

· Good stability, high precision

· Universal, 4-20mA input

· High light LED nixie tube display the concentration, with two levels alarm setting

· With lock and voice elimination function

· Relay output

· 4-20mA output (optional)

· Install method: wall mounted



APPLICATION



The MIC1000A Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
