2.83L Flow Rate Handheld Airborne Particle Counter 6 Particle Size Channels

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number ZLJ-H630
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Airborne Particle Counter Channel Thresholds 6 Channels: 0.3,0.5,1.0,2.0,3.0,5.0μm
Material ABS (plastic Resin) Size 23×13×4.5(cm)
Weight 0.9kg Warranty 1 Years
High Light

zetron handheld airborne particle counter

,

abs handheld airborne particle counter

,

zetron airborne particle counter

Leave a Message
Product Description

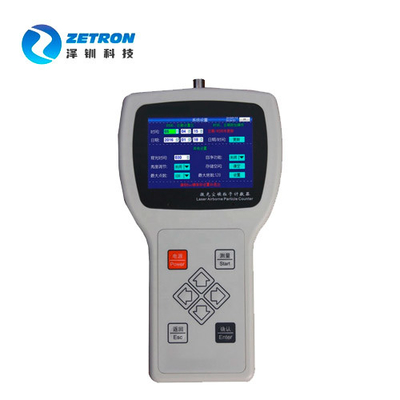

ZLJ-H630 Handheld Airborne Particle Counter
OVERVIEW


ZLJ-H630 New Handheld Airborne Particle Counter is a reliable and easy-to-use machine; it’s handheld, ergonomically designed, and lightweight.
The Model ZLJ-H630 counts airborne particles in six different size ranges simultaneously. Count data is displayed on the screen as a total number of particles. Data can be easily downloaded to a computer, or printed out by an optional printer.

Now it is easy to carry a particle counter right to the point of interest and obtain accurate results–results you can immediately print or store to the computer. The large color LCD display lets you see the data easily and err-free.



2.83L Flow Rate Handheld Airborne Particle Counter 6 Particle Size Channels 0

FEATURES

1. 0.1 CFM (2.83 LPM) flow rate
2. Six particle-size channels (0.3, 0.5, 1.0, 2.0, 3.0, 5.0μm)
3. 480X320 High-resolution color LCD display
4. High capacity USB rechargeable Li-ion battery
5. Internal audible alarm and the alarm channel can be chosen arbitrarily.
6. 95% UCL Calculation
7. Large memory, Up to 260,000 records
8. Free software, data easily downloaded to computer, Export each report to office excel.

SPECIFICATION



Model ZLJ-H630
Channel thresholds 6 channels:0.3,0.5,1.0,2.0,3.0,5.0μm
Flow rate 0.1 ft^3/min. (2.83 L/min.)
Light source Laser diode
Calibration particles SIMT certification
Max. concentration 2,000,000/ft^3
Zero count <1 per 5 min.
Counting efficiency 50% @ 0.3μm, 100%@0.5μm
Communication modes USB
User interface & display 480X320 High-resolution colour LCD display
Data display modes Counts, Counts/m^3, Counts/ft^3
Sampling modes Manual repeated, Auto for UCL calculation (calculation for all 6 channels)
ISO Certification ISO 5-8 @ 0.5 and 5.0μm
Error messages (real-time) Exceeds alarm limits, battery status indication
External software Easy upload to PC
Data storage Up to 260,000 records
External surface ABS (plastic resin)
Dimensions (w*h* d) 23×13×4.5(cm)
Weight 0.9kg
Power AC adapter:100-240 VAC, 50/60 Hz
Battery 3.7V Li-on rechargeable battery 10000mAH
Operating time on battery More than 8hr for sampling
Battery recharging USB
Operating temperature 0 - 35°C
Operating humidity 0-85%
Accessory supplied Free Case, Operation manual, Factory Calibration certificate, Filter, min USB cable, Charger, Isokinetic Probe, Fuse.
