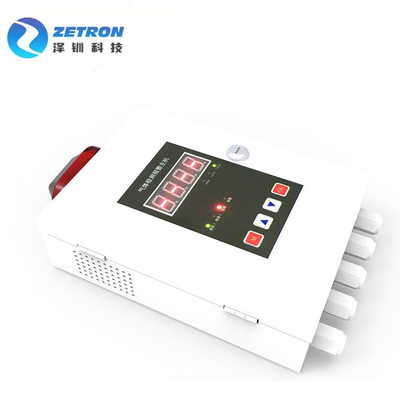

Six Channels Gas Detection Controller 1000m Signal Transmission Distance With Lock And Voice Elimination

Place of Origin China
Brand Name Zetron
Certification CE, RoHS
Model Number MIC1000-6
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Display High Light LED Nixie Tube Display
Working Voltage 220V AC, 50HZ Working Environment Temperature 20℃~50℃, Humidity <95%
Alarm Set Low Alarm, High Alarm Input Signal 4-20mA
Output Signal 4-20mA (optional) Signal Transmission Distance 1000m
Dimension 48cm*27cm*9cm Weight 4.6kg
High Light

six channels gas detection controller

,

1000m signal transmission gas detection controller

,

lock voice elimination gas alarm controller

You can tick the products you need and communicate with us in the message board.
Product name
Leave a Message
Product Description

MIC-1000 Four-channel

Gas alarm controller

OVERVIEW



The gas alarm controller is a smart controlled system that is practical and easy to operate. It can be connected to the gas sensor with 4-20mA signal output, to realize remote control and system integration. It is compatible with different kinds of gas sensors, mainly used for areas that need to measure combustible or toxic gases, which can show the gas concentration directly, and when the gas concentration reaches the alarm point, the controller will alarm with sound and light. The controller is also with relay output, which can control the exhaust fan and other devices, to realize intelligent and automatic operation.





SPECIFICATION



Detection principle the system supplies 24V DC power for the connected sensors, collected the 4-20mA input signals, analyze and show the data of the sensors, and set alarm data of the sensors
Application the system is suitable for all the sensors with 4-20mA signal output
Display High light LED nixie tube display
Working voltage 220V AC, 50HZ
Working environment: temperature 20℃~50℃, humidity <95%
System power under full load of 8 channels, max consumption is 50W
Alarm set low alarm, high alarm
Alarm way two levels light and sound alarm
Input signal 4-20mA
Output signal 4-20mA (optional)
Signal transmission distance 1000m
Relay output several relays signal output, which is corresponding to the input signal accordingly. The corresponding channel and output method are adjustable.
Install method wall mounted
Dimension 48cm*27cm*9cm
Weight 4.6kg



FEATURES & BENEFITS



·Advance micro-processing technology

·Good stability, high precision

·Universal, 4-20mA input

·High light LED nixie tube display the concentration, with two levels of alarm setting

·With lock and voice elimination function

·Relay output

·4-20mA output (optional)

·Install method: wall mounted



Transmission distance

The maximum distance between the detector and the controller is less than 1000 meters, and the maximum distance between the computer and the controllers is less than 1000 meters



Durable

Waterproof and dustproof, can withstand the highest standard test, IP65 protection grade

Check all relays in real-time to ensure the system runs without obstacles



APPLICATION



All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing, Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users, Ice Skating & Hockey Arenas, Cannabis & Hemp Oil, Breweries and so on.
