Rs485 Gas Detection Controller Fixed Concentration Monitoring And Leak Central

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC2000
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, D/A

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Model Number MIC2000
Gas Unit %Vol %LEL Ppm PPHM,℃,RH%,Pa Place Of Origin Beijing, China
Weight 3(kg) Size 250 * 170 * 70mm
High Light

gas detection controller mic2000

,

rs485 gas detection controller

,

rs485 fixed gas detector

Leave a Message
Product Description

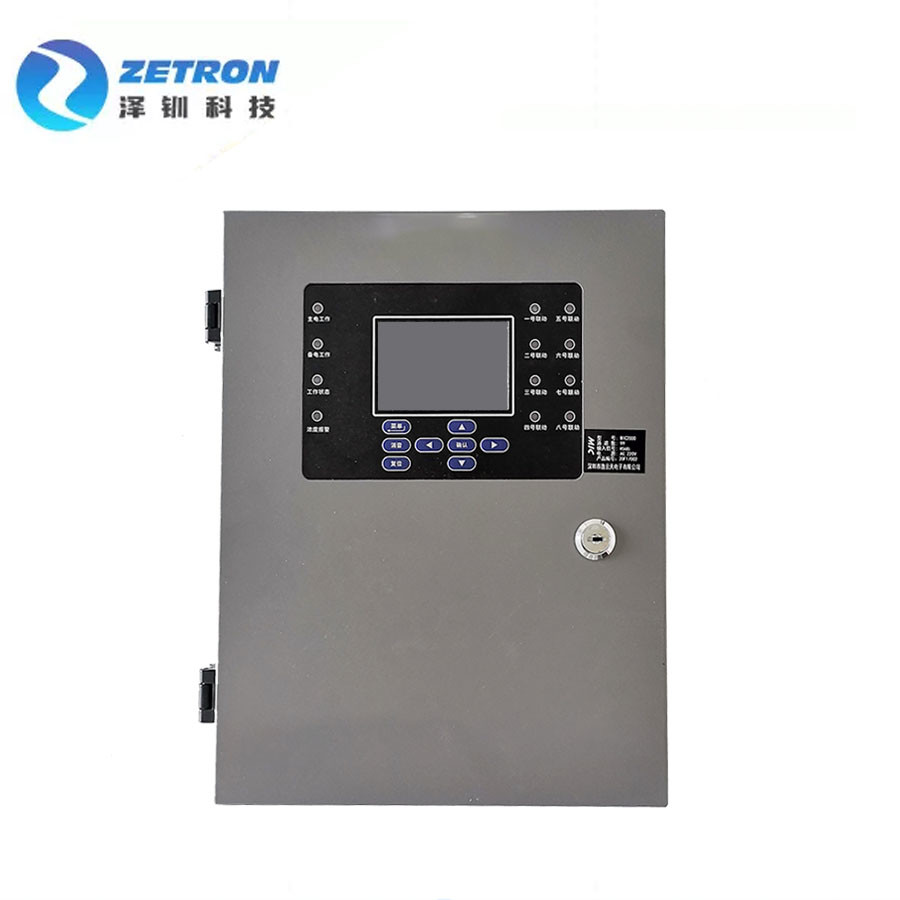

MIC2000 Gas Alarm Controller



OVERVIEW


The Model MIC2000 is a highly capable, user-friendly controller ideal for centralizing display and alarm functions in critical multipoint monitoring applications.
The controller provides simultaneous display and alarm functions for up to 32 input channels.

Display modes and I/O modules are arranged in groups of 1 for expandability in configurations from 1 up to 8 channels.

large color LCD display, non-intrusive operation, data logging, and numerous communication options including wireless.


FEATURES



3.5-inch Hd color screen display, Chinese and English operation interface, default Chinese interface, user operation is easy to understand, Chinese and English can be switched.


Three display modes can be switched: each screen displays the concentration of 6 channels, the system circulation shows the concentration of a single channel and the real-time curve. The automatic or manual circulation between each channel can be switched.


Units available: PPM, LEL%, Vol%, mg/m3, mg/m3, PPHM, ℃, RH%, Pa, kg, PSI, m/s.



Modular structure design, the standard channel is 1 way (up to 32 ways) 4-20mA input signal, at the same time can be connected to 255 ways RS485 input signal, more channel input signal can be customized, the controller and the controller can communicate with each other, with zero point and target point calibration function, display accuracy can reach more than 0.1%FS.


Support SD card or USB storage, support to view all records locally, selective view records, delete records.



The remote transmission function: the controller can upload the real-time concentration through cable (2000 meters) or optional transmission function: network transmission or wireless transmission function(2 km, 5 km, unlimited distance is optional), and through 2 core cable, LAN, Internet or wireless transmission to the monitoring center, environmental protection bureau and other monitoring devices, and then through the PC software for data display, storage, analysis, or use the communication protocol to read data.
