28.3l/Min Flow Rate Microbial Air Sampler Fsc-A6 Six Level Sieve Impact Type

  • 28.3l/Min Flow Rate Microbial Air Sampler Fsc-A6 Six Level Sieve Impact Type
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number FSC-A6
Minimum Order Quantity 1
Packaging Details plastic carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Air Microbial Sampler Noise ≤50 Db
Flow Rate 28.3L/min Size 210*250*130(mm)
Weight 4.7Kg Power Supply 220V/AC
High Light

sieve impact type microbial air sampler

,

28.3l/min microbial air sampler

,

sieve impact portable microbial air sampler
Leave a Message
Product Description

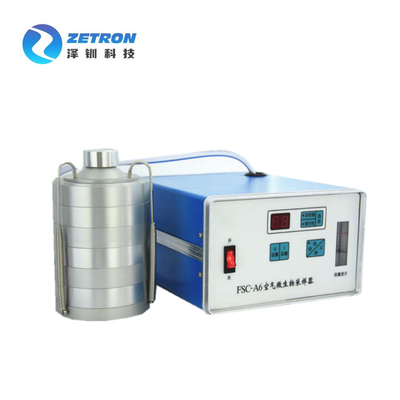

FSC-A6 Air Microbial Sampler

OVERVIEW

Fsc-a6 type six screen impactor air microorganism sampler is composed of impactor and main As a unit. The impactor is a six-layer aluminum disc with tiny holes. AGAR plate is placed under the disc, and there is a sealing rubber ring between each disc, and the disc is firmly linked together through three spring hooks. Each disk has 400 holes of precise size arranged in a circle, layer by layer, and a standard sampling flow rate of 1 cubic foot per minute. When the airflow containing microbial particles enters the upper sampling port, due to the increase of airflow velocity layer by layer, microbial particles of different sizes impact on the corresponding AGAR surface according to aerodynamic characteristics. The size range of particles trapped at each stage is determined by the airflow velocity of the hole and the particle interception rate of the upper stage. Levels 1 and 2 mimic human upper respiratory tract particles, and levels 3 to 6 mimic human lower respiratory tract particles, which substantially replicate the penetration and retention sites of these particles in the respiratory tract.



SPECIFICATION



Measurement range Capture rate
≥98%
Particle capture range
First stage:7μm Aperture 1.18mm

Second stage: 4.7μm - 7.0μm Aperture 0.91mm

The third level: 3.3μm - 4.7μm pore size 0.71mm

Fourth grade: 2.1μm - 3.3μm pore size 0.53mm

Fifth grade: 1.1μm - 2.1μm pore size 0.34mm

Sixth stage: 0.65μm - 1.1μm pore size 0.25mm
Sampling volume
28.3L/min Error＜5%
Sampling period
1-99 minutes can be set arbitrarily
Noise
≤50 db
Working power
220V/AC
Power
≤ 45W
Volume (W×L×H)
Host: 210×250×130 (mm) Weight: 4.7Kg

Impactor: 110 × 110 × 850 (mm) Weight: 1.1Kg

APPLICATION



Particle analysis in cleanrooms and related controlled environments Indoor and outdoor air quality studies Bioaerosol studies
