8 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10

Place of Origin China
Brand Name Zetron
Certification CE
Model Number B330
Minimum Order Quantity 1 set
Price USD 145/set- 879/set
Packaging Details 130*68*34mm
Delivery Time 1-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 SET / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Airborne Particle Counter Alarm Mode Internal Audible Alarm
Flow Rate 100 L/min Power 220V±10%,50Hz±2Hz
Size 220*280*260 Mm Weight 8.5 Kg
High Light

8 channels portable airborne particle counter

,

pm0.3 portable airborne particle counter

,

pm10 airborne particle counter

Leave a Message
Product Description

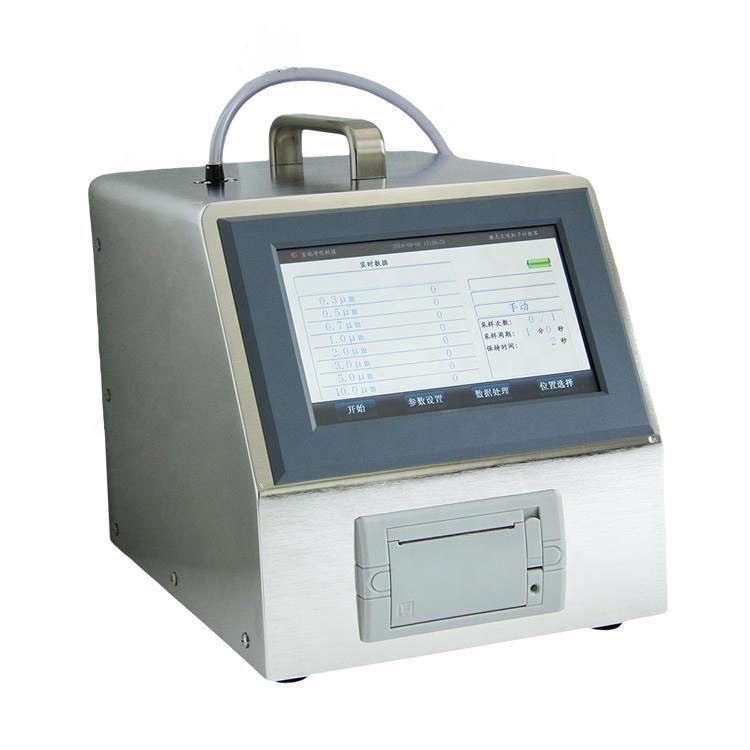

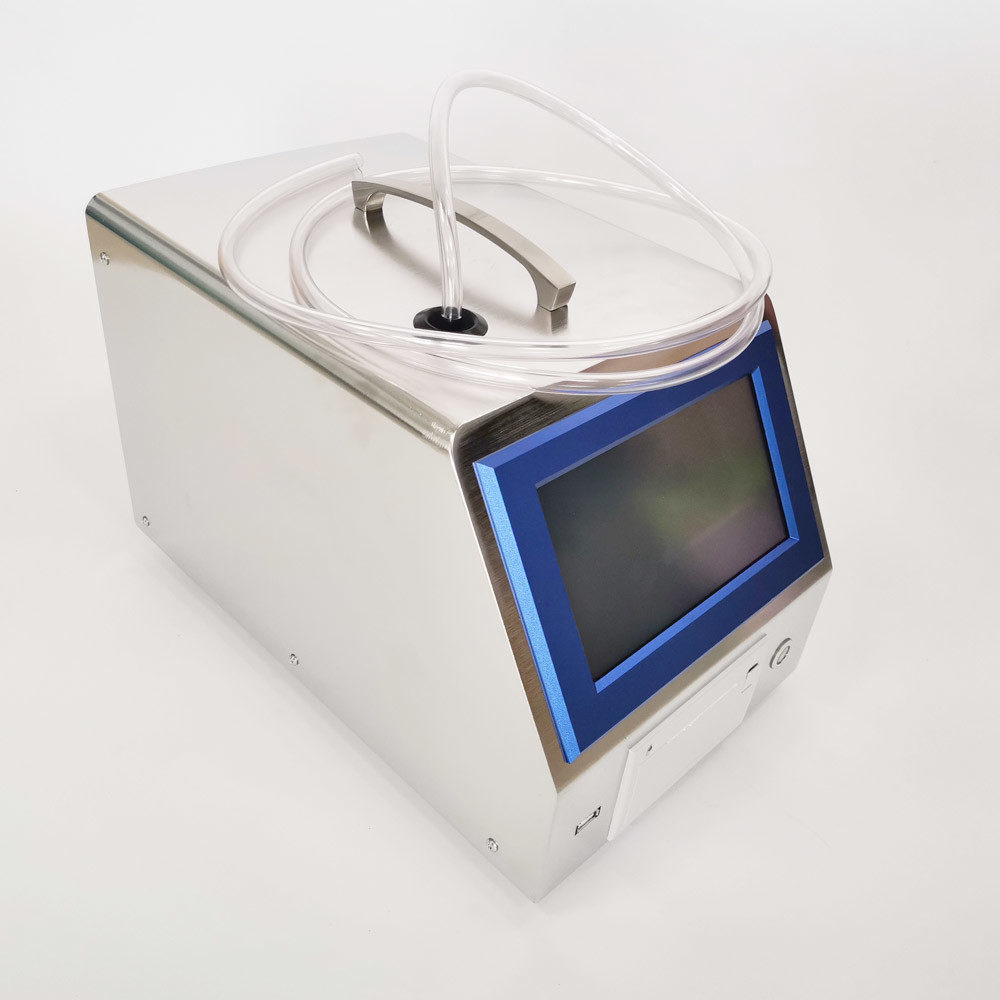

ZLJ-B330 Portable Airborne Particle Counter



OVERVIEW



With fast, reliable sampling of one cubic meter of air in only ten minutes, the ZLJ-B Series Portable Airborne Particle Counters offer fast cleanroom qualification and at sensitivities of 0.3 microns.
They can store up to 5,000 records of particle count data from up to 8 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports. All data can be quickly and reliably transferred to a computer.




SPECIFICATION



Model
ZLJ-B1030
ZLJ-B550
ZLJ-B330
Size Range
0.3 - 10.0 µm
Channel Sizes
8-Channel: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10.0 µm
Flow Rate
100L/min
50L/min
28.3L/min
Concentration Limits
35,000 particles/L
Dimensions(mm)
223*348*250
220*285*260
220*285*260
Weight(Kg)
7.1
9.0
8.5
Sample Period
1 Sec~5999 Sec(5L-5000L)
Data Storage
2000 samples
Communication Modes
WIFI, RS-485, Ethernet, USB, Software
Environmental Sensors
(Optional)
Temperature, Relative Humidity, Air Velocity, Differential Pressure,
Battery or others
Touch Screen Display
9.1 inch (23 cm) color TFT touch screen display
Alarms
Integrated alarm buzzer. Alarms on counts, low battery (optional)
Enclosure
Stainless Steel
Power
220V±10%,50Hz±2Hz
220V±10%,50Hz±2Hz


8 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 08 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 18 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 28 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 38 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 48 Channels Portable Airborne Particle Counter Pm0.3 Pm2.0 Pm10 5



APPLICATION



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
