Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68

Place of Origin China
Brand Name zetron
Certification CE
Model Number ZRD4200
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Laser Methane Detector Display Concentration Unit Support Ppm*m, %LEL*m And %VOL*m Display Unit Bit(optional)
Measuring Range 0ppm*m-100000 Ppm*m Protection Level IP 68
Size 130mm*37.5mm*40mm Weight 0.26kg
High Light

ip 68 laser methane detector

,

remote non contact laser methane detector

,

non contact rmld gas detector

Leave a Message
Product Description

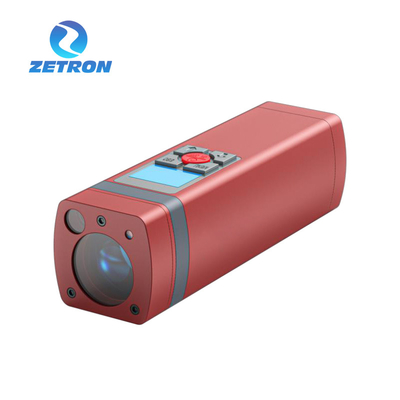

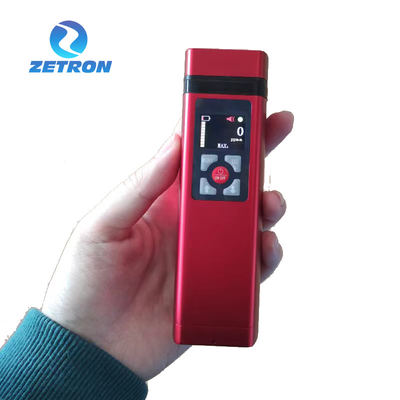

ZRD4200 Laser Methane Detector

OVERVIEW



It is lightweight, small in size, and easy to carry. This product is suitable for all kinds of places where methane may leak, especially for places where there is gas leakage risk in overhead pipelines, narrow spaces, residential kitchens, etc., but inspection personnel cannot approach due to distance, obstacles, and other reasons.

SPECIFICATION



Measuring range
0ppm*m100000 ppm*m
Sensitivity
5ppm*m
Detection range
50 m
The response time
0. 05s
Display concentration unit
Support ppm*m, %LEL*m and %VOL*m display unit bit(optional)
Laser level
Detection laser: Class I
Indicates the laser
Class III R, avoid direct exposure to glasses
Alarm way
LCD alarm, sound alarm
Meow prospective way
Green indicator laser
Protection grade
IP 68
Explosion-proof grade
Exib IIC T4 Gb
Working time
> 4 hours
Power supply equipment
The lithium battery
The equipment size
130mm*37. 5mm* 40mm


Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 0
Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 1
Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 2
Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 3
Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 4
APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.



Zrd4200 Laser Methane Detector 0 ~ 100000 Ppm*M Remote Non Contact Ip 68 5
