PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor

Place of Origin China
Brand Name zetron
Certification CE
Model Number PTM100
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Dust Detector Detectable Particle Size PM1,PM2.5,PM5,PM10,TSP
Measuring Range 0 To 99,999 Ppm*m Range PM10 Particle Size Dust(0.001~10)mg/m³
Size 180 * 94 * 181mm Weight 2 Kg
High Light

tabletop environmental monitor

,

dust and fume environmental monitor

Leave a Message
Product Description

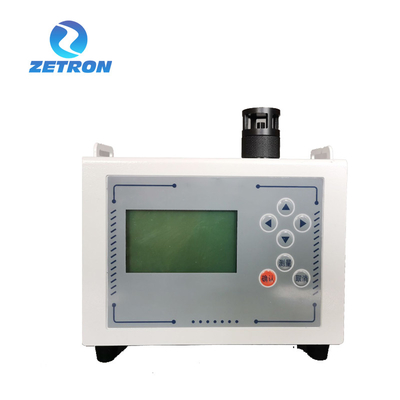

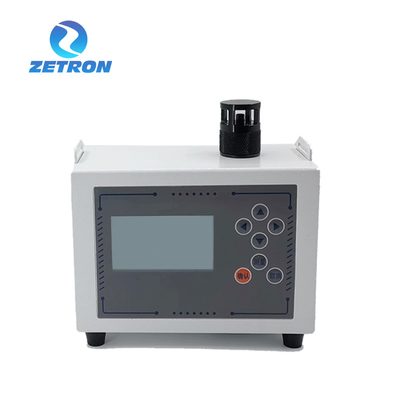

PTM100 Microcomputer Laser Dust Meter

OVERVIEW



PTM100 dust detector is Highly effective for monitoring air quality, the Dust Meter measures TSP, PM10, PM5, PM2.5 and PM1 simultaneously in real-time. The instrument is mainly composed of control circuit board, optical monitor, air pump, and communication module. The principle is to measure the dust concentration by laser scattering method, and realize the fixed-point monitoring and communication transmission of measurement data.

Air samples are continuously drawn through the nephelometer, which analyses individual particles as they pass through a laser beam. The nephelometer’s microprocessor has the capacity to analyze individual particles even if there are millions of particles per liter.

SPECIFICATION



Project
Performance Index
Accuracy
0.001mg/m³
Indication error
±20%
Detectable particle size
PM1.0,PM2.5,PM5,PM10,TSP
Flow
2L/min
Sampling mode
Pump suction
Interface display
LCD
Power
12VDC power adapter, rechargeable battery pack(optional)
Storage humidity
≤85% RH
Dimensions Main body length width height
180 * 94 * 181mm
Weight
2kg
Alarm output
Sound alarm, switch output alarm (optional)


PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 0
PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 1
PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 2
PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 3
PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 4

APPLICATION


The detector is widely used in petroleum, environmental protection, metallurgy, refining, biochemical medicine, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.


PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor 5
