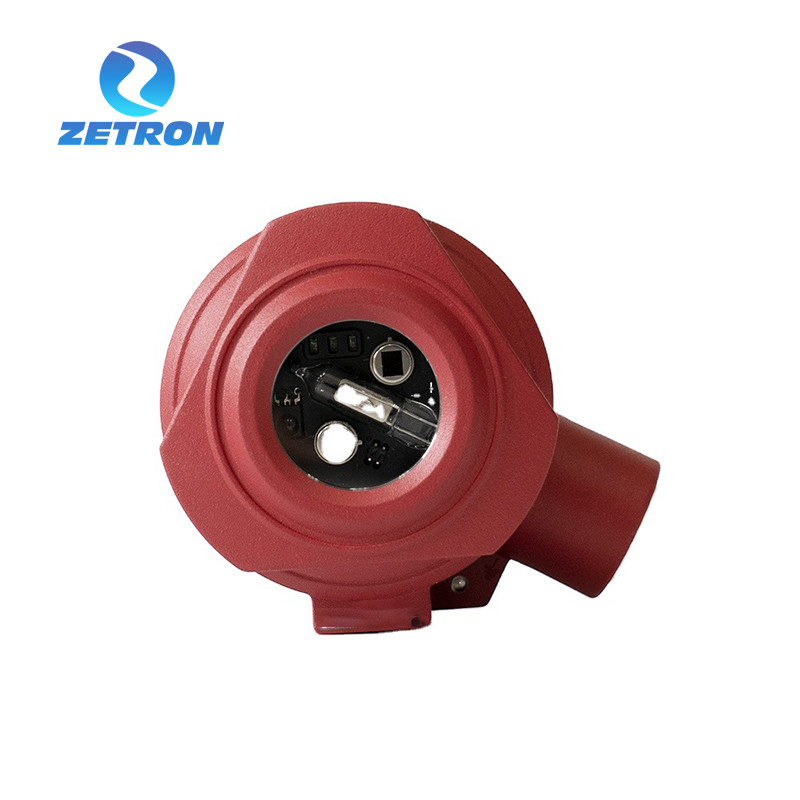

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

  • Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MIC-200-FD707EX
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fixed Flame Detector Maximum Detection Angle 120°
Voltage (18~30 VDC ) Maximum Detection Range 40m
Size 120mm* 95mm* 85mm (L*H*W) Weight 3(kg)
Highlight

2 flames ultraviolet infrared flame detector

,

explosion proof ultraviolet infrared flame detector

,

explosion proof ir flame detector
Leave a Message
Product Description



MIC200-FD707EX Ultraviolet&Infrared Flame Detector

OVERVIEW

The detector MIC200-FD707EX combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc). The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet photoelectric sensor from Hamamatsu Photonics Co., Ltd., with a built-in 32-bit microprocessor and patented composite signal processing algorithm. KF715/UVIR2 flame detectors are smaller in size, lighter in weight, and easier to install.


Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 0

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 1

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 2Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 3Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 4Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 5Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 6



SPECIFICATION



Model
MIC200-FD707EX
Spectrum Range
UV 185-260nm IR 4.3-5.0μm
Detection angle
120° 40m
Sensitivity level
Grade I
Main Voltage
24VDC(18~30VDC)
Ex-Atex Protection Level
Exd II C T6 Gb/tD A21 IP66 T80°C
Protection class
IP66 / IP67
Operation method
Infrared remote control
Temperature range
-40℃～70℃
Environmental Storage temperature range
(-40~-158°F)
Humidity:
0 ～ 96%RH (non-condensing) can withstand
100% condensing humidity for a short time

Materials and colors
Cast Aluminum,The coating is an insulating layer,corrosion-resistant, Red
Electrical Interface
1×3/4NPT,M25*1.5,G3/4, optional
Size
120mm* 95mm* 85mm
Weight about
0.7kg




APPLICATION


The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.


Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames 7
