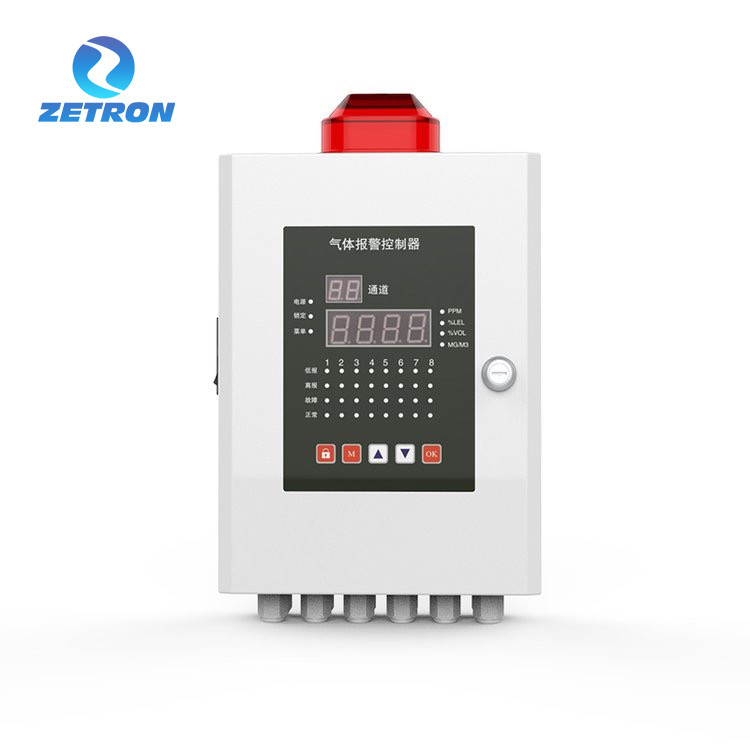

Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number TH100-16
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gas Alarm Controller Gas Unit PPM
Voltage (18~30 VDC ) Channel 16
Size 400mm*280mm*80mm Weight About 3.6kg
High Light

sixteen channel gas detection controller

,

combustible gas detection controller

,

8 relays output gas alarm controller

Leave a Message
Product Description
TH100-16 Gas Detector Controller
OVERVIEW

With new design of Touch screen, simple operation. It could connect the TH100 fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The TH100 Combustible Gas detector controller and TH100 is Alarm control main engine wireless it could guarantee the security of the industrial working place.
SPECIFICATION



Item
Description
Product name
TH100 - 16 Channel Gas Alarm Controller
Display
8 inch TFT LCD touch screen
Power supply
AC220V±15%, 50Hz±1%
Consumption
≤10W(according to different channels)
Output voltage
DC24V±15%
Input signal
RS-485/ 4-20mA
Relay output
8 relay output with optional NO or NC / customized
Relay contact capacity
5A, 30VDC or 5A, 220VAC
Alarm mode
Audible, visual
Installation mode
Wall-mounted
Suitable gas detector
MIC100 Fixed gas detector with RS485 signal output
Gas detector quantity
≤64pc


Communication distance
≤2000m


Working temperature
-10℃~+50℃


Working humidity
10~95%RH(Non-condensation)


Size
400mm*280mm*80mm


Weight
About 3.6kg


Protection grade
IP54


Quality standard
GB 16808-2008 GB 15326-1994


Certificate
CE, RoHS



Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 0Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 1Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 2Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 3Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 4Sixteen Channel Combustible Gas Detection Controller With 8 Relays Output 5

APPLICATION


The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
