Eight Channel Gas Alarm Controller 4 Relays Output For Petroleum Refinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gas Alarm Controller | Gas Unit | PPM |
|---|---|---|---|
| Voltage | (18~30 VDC ) | Channel | 8 |
| Size | 400mm*280mm*80mm | Weight | About 3.6kg |
| High Light | eight channel gas alarm controller,4 relays output gas alarm controller,petroleum refinery gas alarm controller |
||
Product Description

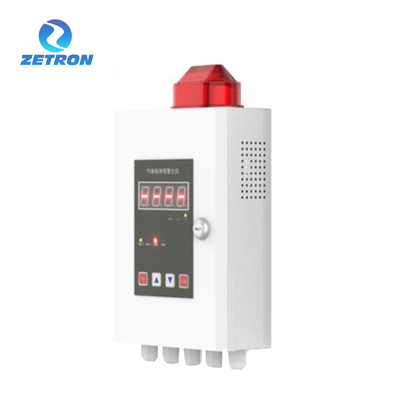

TH100-8 Gas Detector Controller
OVERVIEW
With new design of Touch screen, simple operation. It could connect the TH100 fixed gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The TH100 Combustible Gas detector controller and TH100 is Alarm control main engine wireless it could guarantee the security of the industrial working place.
SPECIFICATION
|
Item
|
Description
|
||
|
Product name
|
TH100 - 8 Channel Gas Alarm Controller
|
||
|
Display
|
8 inch TFT LCD touch screen
|
||
|
Power supply
|
AC220V±15%, 50Hz±1%
|
||
|
Consumption
|
≤10W(according to different channels)
|
||
|
Output voltage
|
DC24V±15%
|
||
|
Input signal
|
RS-485/ 4-20mA
|
||
|
Relay output
|
4 relay output with optional NO or NC / customized
|
||
|
Relay contact capacity
|
5A, 30VDC or 5A, 220VAC
|
||
|
Alarm mode
|
Audible, visual
|
||
|
Installation mode
|
Wall-mounted
|
||
|
Suitable gas detector
|
MIC100 Fixed gas detector with RS485 signal output
|
||
|
Gas detector quantity
|
≤64pc
|
|
|
|
Communication distance
|
≤2000m
|
|
|
|
Working temperature
|
-10℃~+50℃
|
|
|
|
Working humidity
|
10~95%RH(Non-condensation)
|
|
|
|
Size
|
400mm*280mm*80mm
|
|
|
|
Weight
|
About 3.6kg
|
|
|
|
Protection grade
|
IP54
|
|
|
|
Quality standard
|
GB 16808-2008 GB 15326-1994
|
|
|
|
Certificate
|
CE, RoHS
|
APPLICATION
The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
