P Series Laser Scanning System Methane Leakage Monitoring

Place of Origin China
Brand Name Zetron
Certification CE
Model Number P Series
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Laser Methane Detector Working Humidity 0~95%RH
Measuring Range 0ppm*m-100000 Ppm*m Protection Level IP 68
Size 130mm*37.5mm*40mm Weight 0.26kg
High Light

p series laser scanning system

,

laser scanning system methane leakage monitoring

Leave a Message
Product Description

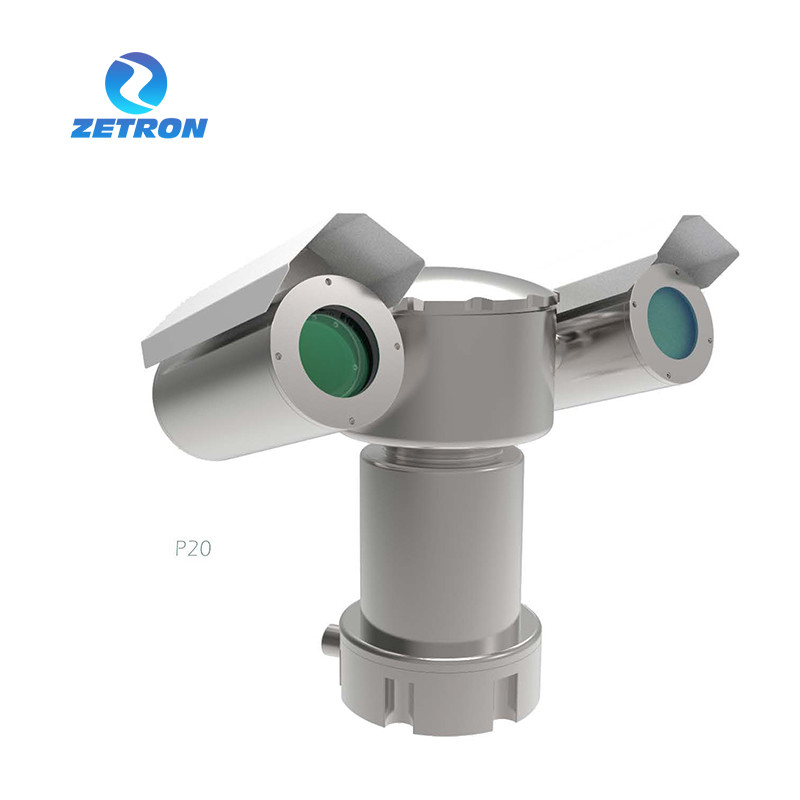

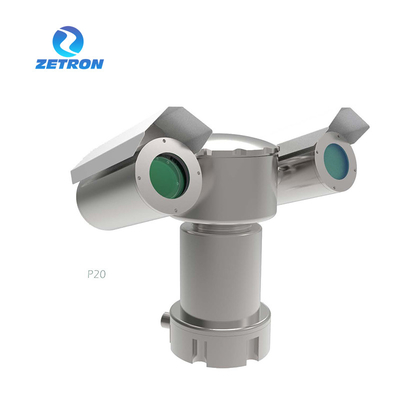

P series Laser Methane Leak Monitor
OVERVIEW

The structure of the laser scanning gas detector is composed of an explosion-proof pan/tilt, a laser hydrogen sulfide sensor, and a camera, and it has a SIL3 certification issued by a certification body. MIC-600-SGLD100-H2S explosion-proof network HD integrated pan/tilt hydrogen sulfide detector is the latest explosion-proof monitoring equipment. This product can be used alone in an environment with flammable, explosive gas and combustible dust to achieve the purpose of monitoring the scene. It can be

widely used in petroleum, chemical industry, oil depots, ships, drilling platforms, gas stations, gas stations, ports, mines, aerospace, military industry, steel, pharmaceuticals, fireworks production, food processing, and other places.


SPECIFICATION



Model
P20
Detection Targets
Methane (CHA)
Measuring Principle
TDLAS
Testing Laser Rating
Class I (Harmless to Naked Eye)
Static Detection Limit
5 ppm-m
Directing Laser Rating
Class IIIR (Harmful to Naked Eye)
Response Time
0.05s
Explosion -proof Grade
Exd IIC T6 Gb
Concentration Range
0-50,000 ppm-m
Protection Level
IP68
Max Detection Distance
150m
PTZ Camera Model
Customization Accepted
Data Interface
RS-485 Modbus / Ethernet / ALARM
Operating Temperature
-40°℃ - 60°℃
Power Supply
220VAC / 24VDC
Operating Humidity
< 90%RH, No condensation
Typical Power
50 W
PTZ Device Range
Horizontal +/-360° & Vertical +/-90°
PTZ Device Size
515 x 260 x 400 mm
PTZ Device Weight
32 kg

P Series Laser Scanning System Methane Leakage Monitoring 0
P Series Laser Scanning System Methane Leakage Monitoring 1
P Series Laser Scanning System Methane Leakage Monitoring 2
P Series Laser Scanning System Methane Leakage Monitoring 3
P Series Laser Scanning System Methane Leakage Monitoring 4



APPLICATION



Versatile and practical, this device is ideal for short-term testing of air quality in buildings, workplaces and on the roadside. With a very fast response time, it delivers accurate readings and can locate sources of airborne dust and fumes even at very low concentrations.



P Series Laser Scanning System Methane Leakage Monitoring 5
