Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas

  • Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas
Place of Origin China
Brand Name Zetron
Certification ISO21501-4
Model Number R210
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Cleanroom Remote Particle Counter Temperature 0~50℃
Explosion-proof Laser Diode Protection Grade IP65
Size 120 * 65 * 132 Mm Weight 0.6 Kg
Name Online Cleanroom/air Quality Monitoring Sensor Remote Airborne Particle Counter Keyword Airborne Particle Counter
Highlight

gmp controlled areas airborne particle counter

,

airborne particle counter ip65

,

r210 portable airborne particle counter
Leave a Message
Product Description

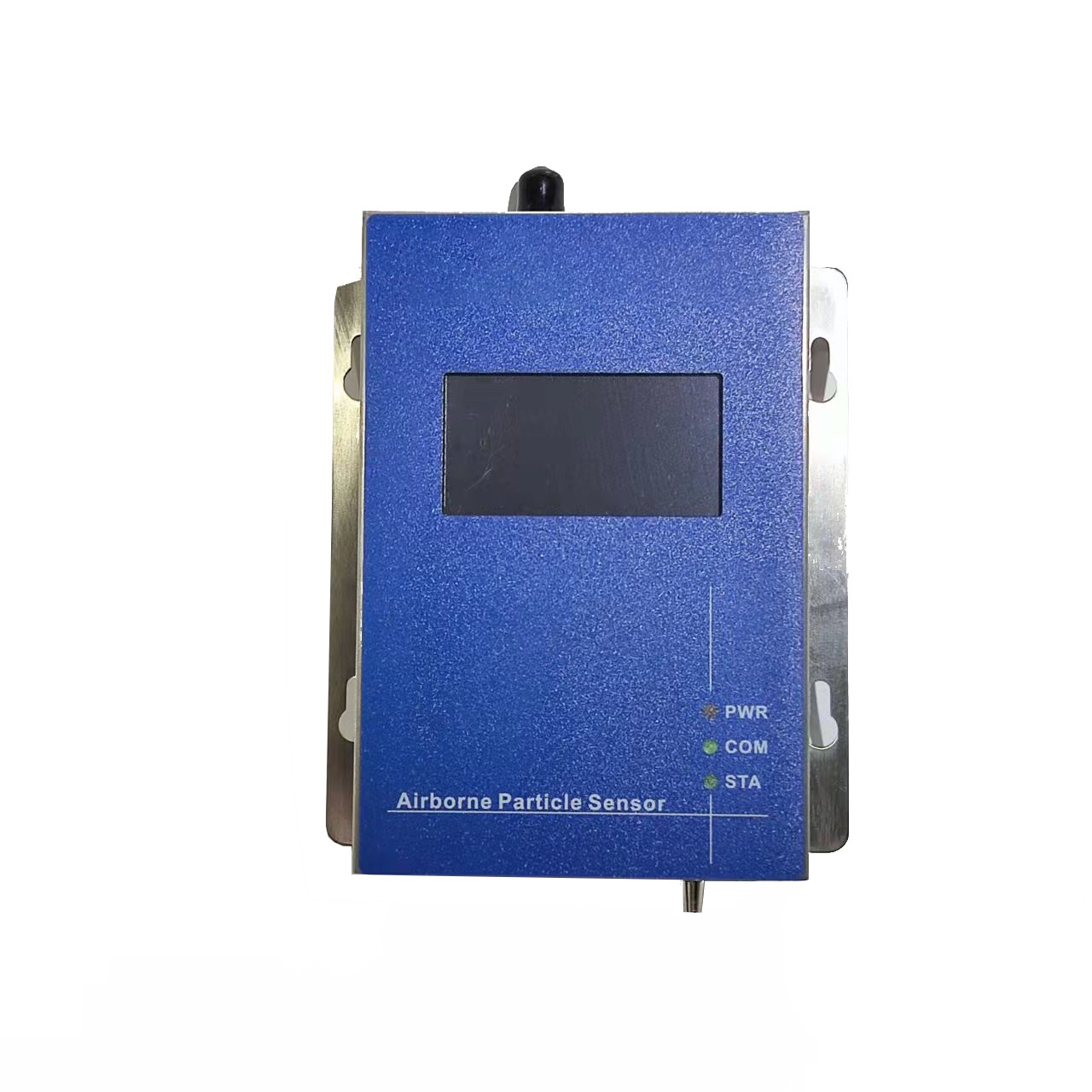

R210 Dust Airborne Particle Counter Sensor

OVERVIEW



R Series Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured data will be directly displayed on the display screen of each monitoring point.
R Series Remote Particle Counter meets the requirements of GMP, and ISO21501-4.
If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.
In addition, the R Series Remote Particle Counter contains multiple models, customers can choose the models according to their actual needs.



FEATURES & BENEFITS



1.Particle size channels: 0.3um-25um (optional)
2.Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) (optional)
3. Three indicators: power indicator, communication indicator, measurement status indicator
4.RS485 (Modbus), 4-20mA, WIFI, LORA, TCPIP, and other signal output options
5. Long-life service with imported laser diodes and vacuum pumps
6. Displayed intuitive and clear with 2.4 inch OLED
7. 316 stainless steel casing can be customized



SPECIFICATION



Model
R200 (2.83L/min)
R300 (28.3L/min)
R210 (2.83L/min)
R310 (28.3L/min)
R310P
(28.3L/min)
Channel sizes
Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm
Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm
Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm
(Customizable)
Display
X
Customizable
2.4 inch OLED
Display
2.4 inch OLED
Output
RS485(modbus)
RS485(modbus) or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus)
Extended Output
X
4-20mA(2 channels); 0-5V(2channels)
Relay(2channels); WiFi; LORA
Power Supply
12-24V
12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus))
Pump
External pump
Built-in pump(R210)
External pump(R310)
Built-in pump
Weight & Size
0.2-0.3Kg
106.5×76×49(mm)
0.9Kg
135×120×60(mm)
2.6-2.8Kg
217×250×138(mm)



Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas 0

Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas 1

Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas 2

APPLICATION

Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size, weight, and sleek handle, you can easily utilize this unit.
These units provide immediate results that allow you to proactively monitor your environment.


It's widely used in GMP Controlled Areas, Isolators, Restricted Access Barrier Systems (RABS), Cleanrooms, Hospital Pharmacies, Laboratories, Industrial, Aerospace, Trend Analysis, Clean Micro-environment Monitoring, Multi-spot Monitoring, etc.

Ip65 R210 Airborne Particle Counter For Gmp Controlled Areas 3
