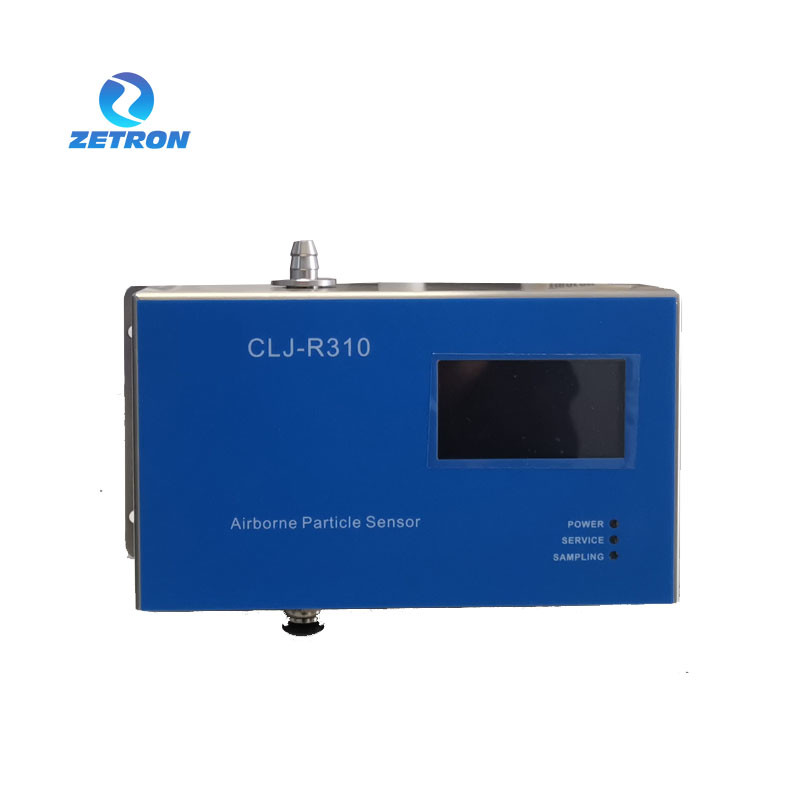

28.3L/Min R310 Air Particle Counter For Clean Room

Place of Origin China
Brand Name Zetron
Certification ISO21501-4
Model Number R310
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Clean Room Particle Counter Flow Rate 28.3L/min
Explosion-proof Laser Diode Vacuum Pump Separate Pump
Size 120 * 65 * 132mm Weight 0.6kg
High Light

r310 air particle counter

,

air particle counter for clean room

,

r310 particle count test for cleanroom

Leave a Message
Product Description
R Series Clean Environment Dust Particle Counter
OVERVIEW



Clean Environment Monitoring System is an advanced, reliable, and user-friendly monitoring software suite that features a truly distributed architecture.
High availability databases and hot standby system fail-over functionality assure (multiple manufacturers supported), temperature/humidity, differential pressures compliance, and peace of mind.
Local Display, real-time monitoring of the clean environment cleanliness, differential pressure, temperature, humidity and 24x7 continuous monitoring.
R310 remote particle counter has local Display, real-time monitoring of the clean environment cleanliness, differential pressure, temperature, humidity and 24x7 continuous monitoring the Monitoring software has two parts: Server and the Client-Side.



FEATURES & BENEFITS



● Historical data of any period/ position can be reviewed via software, and the data can be converted into EXCEL format.
● Start-up time and stop time can be set for each sensor.
● Fully GMP compliant and auto judgment.
● User configurable system views, status windows, and multi-level maps.
● Alarm display, notification (email. SMS and telephone) and acknowledgment.
● User configurable system views, status windows and multi-level maps.
● Ethernet communication is reliable and easy to extend.



SPECIFICATION



Model
R200 (2.83L/min)
R300 (28.3L/min)
R210 (2.83L/min)
R310 (28.3L/min)
R310P
(28.3L/min)
Channel sizes
Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm
Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm
Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display
X
Customizable
2.4 inch OLED
Display
2.4 inch OLED
Output
RS485(Modbus)
RS485(Modbus) or TCPIP(modbus)
(TCPIP has no extended output)
Power Supply
12-24V
12-24V(RS485(Modbus))
12-24V,48V Standard POE(TCPIP(Modbus))
Pump
External pump
Built-in pump(R210)
External pump(R310)
Built-in pump
Weight & Size
0.2-0.3Kg
106.5×76×49(mm)
0.9Kg
135×120×60(mm)
2.6-2.8Kg
217×250×138(mm)



28.3L/Min R310 Air Particle Counter For Clean Room 0

28.3L/Min R310 Air Particle Counter For Clean Room 1

APPLICATION



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size, weight, and sleek handle, you can easily utilize this unit.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing;  Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
; Electronic Industry (semiconductor factory, precision machinery production and processing, etc); Food Hygiene Industry (dairy products, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.

28.3L/Min R310 Air Particle Counter For Clean Room 2
