4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC2000
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, D/A

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Model Number MIC2000
Alarm Audible+Visual Output Signal Ethernet RS485 (standard MODBUS Protocol), 4-20mA (4 Channels, 8 Channels Optional)
Screen Display 3.5-inch Hd Working Temperature -40℃~+70℃
Weight 3.6kg Size 250 * 170 * 70mm
High Light

4 channels gas detection controller

,

4 gas detection controller

,

industry carbon monoxide controller

Leave a Message
Product Description

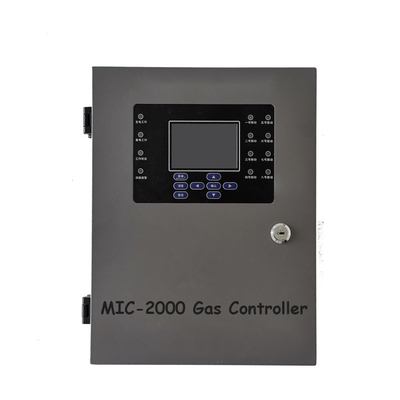

MIC2000 Gas Detect Controller



OVERVIEW



The gas alarm controller is a centralized alarm controller for gas concentration monitoring and leakage. The power source is directly powered by the mains grid or battery. This alarm controller receives RS485 signal and 4-20mA, and temporarily can only receive RS485 signal output by our company's new online detector.

High-definition color screen, six-channel simultaneous display or large-font single-channel circular display, more than six
channels automatically or manually turn the screen and circular display



SPECIFICATION



Signal input
1~32 channels 4~20mA, RS485 input at the same time, 255 probes can be connected
Output signal
Ethernet, RS485 (standard MODBUS protocol), 4-20mA (4 channels, 8 channels optional)
Display range
number 0~99999
Resolution
1, 0.1, 0.01, 0.001 optional
Display mode
high-definition color screen, six-channel simultaneous display or large-font single-channel circular display, more than six
channels automatically or manually turn the screen and circular display
Control loop
standard is 4 channels, 1 public output, optional 8 channels, 12 channels, 16 channels control output
Alarm mode
sound and light alarm, three-level alarm, each loop can set high and low limit alarm values separately
Working temperature
-40℃~+70℃
Relative humidity
0~95%RH, used in non-condensing occasions, waterproof splash, and short-term rain, can be customized outdoor completely moisture-proof and rain-proof
Power source
220VAC/50Hz or 24VDC, 2A, 24VDC, 5A, 24VDC, 10A optional, according to the number of probes to choose
Maximum power consumption
2.5W/channel
Dimensions
330*255*95mm (2/4/8 channels); 420*305*95mm (16/24 channels); 540*305*95 (32 channels)



4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 0
4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 1
4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 2
4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 3
4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 4
4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 5






APPLICATION

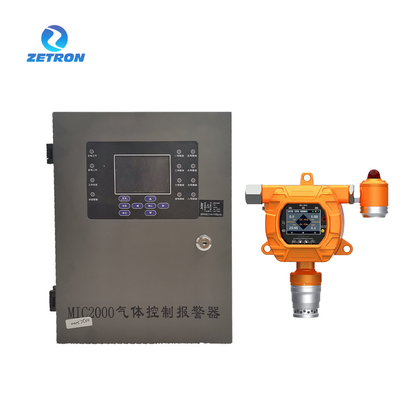

MIC2000 gas detection controller is used to connect with the fixed gas detector and the related equipment in the industrial scenes, such as petroleum refineries, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.

4 Channels Gas Detection Controller To Monitor 4 Gas Detectors In Industry 6
