Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC2000
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, T/T, D/A

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Model Number MIC2000
Alarm Audible+Visual Customized Support OEM, ODM, OBM, Software Reengineering
Screen Display 3.5-inch Hd Place Of Origin Beijing, China
Weight 3.6kg Size 250 * 170 * 70mm
High Light

mic2000 gas detector controller

,

eight channels gas detector controller

,

8 sensors gas detection controller

Leave a Message
Product Description

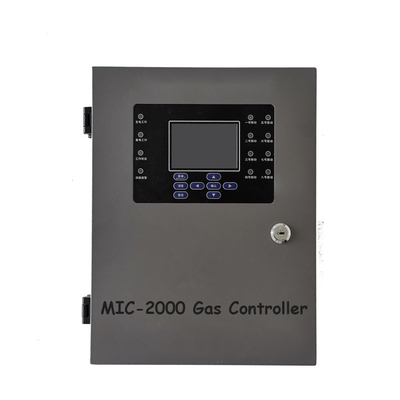

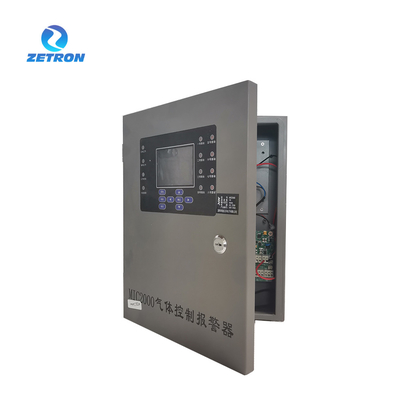

MIC2000 Gas Alarm Controller



OVERVIEW



The gas alarm controller is a centralized alarm controller for gas concentration monitoring and leakage. The power source is directly powered by the mains grid or battery. This alarm controller receives RS485 signal and 4-20mA, and temporarily can only receive RS485 signal output by our company's new online detector.

The gas controller standard is 4 channels, 1 public output, optional 8 channels, 12 channels, and 16 channels control output. And it has many types of alarm modes like sound and light alarms, and three-level alarms, each loop can set high and low limit alarm values separately.



SPECIFICATION



Signal input
1~32 channels 4~20mA, RS485 input at the same time, 255 probes can be connected
Output signal
Ethernet, RS485 (standard MODBUS protocol), 4-20mA (4 channels, 8 channels optional)
Resolution
1, 0.1, 0.01, 0.001 optional
Display accuracy
±0.1%FS
Control loop
standard is 4 channels, 1 public output, optional 8 channels, 12 channels, 16 channels control output
Alarm mode
sound and light alarm, three-level alarm, each loop can set high and low limit alarm value separately
Output control
The standard is 4 groups of relay contact output (normally open/normally closed), contact capacity 3A, 32VDC or 3A, 220VAC, one set of common alarm output, contact capacity 12A, 32VDC or 7A, 240VAC
Automatic detection
line break/short circuit detection, various detector states, function detection, etc.
Working temperature
-40℃~+70℃
Relative humidity
0~95%RH, used in non-condensing occasions, waterproof splash and short-term rain, can be customized outdoor completely
moisture-proof and rain-proof
Maximum power consumption
2.5W/channel
Backup power supply
DC24V 5Ah (optional)
Dimensions
330*255*95mm (2/4/8 channels); 420*305*95mm (16/24 channels); 540*305*95 (32 channels)



Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors 0
Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors 1
Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors 2
Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors 3
Mic2000 Eight Channels Gas Detector Controller Can Monitor 8 Gas Sensors 4






APPLICATION



MIC2000 gas detection controller is used to connect with the fixed gas detector and the related equipment in the industrial scenes, such as petroleum refineries, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
