Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles

  • Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles
  • Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles
  • Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number AG-4B
Minimum Order Quantity 1
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Aerosol Generators Air Flow Range 80-13000m3/h
Size 280*260*252mm Weight 10kg
Highlight

lightweight small particle aerosol generator

,

multiple nozzles small particle aerosol generator

,

multiple nozzles aerosol generators
Leave a Message
Product Description

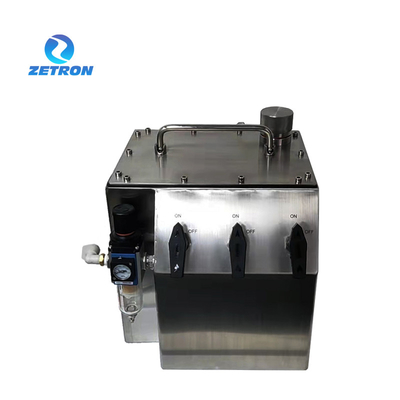

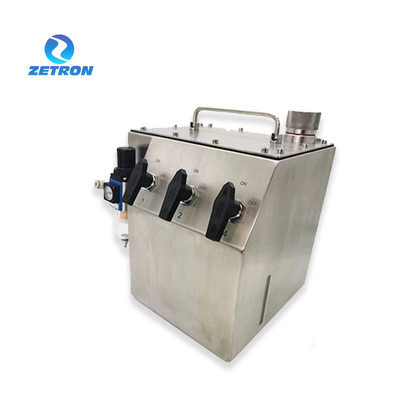

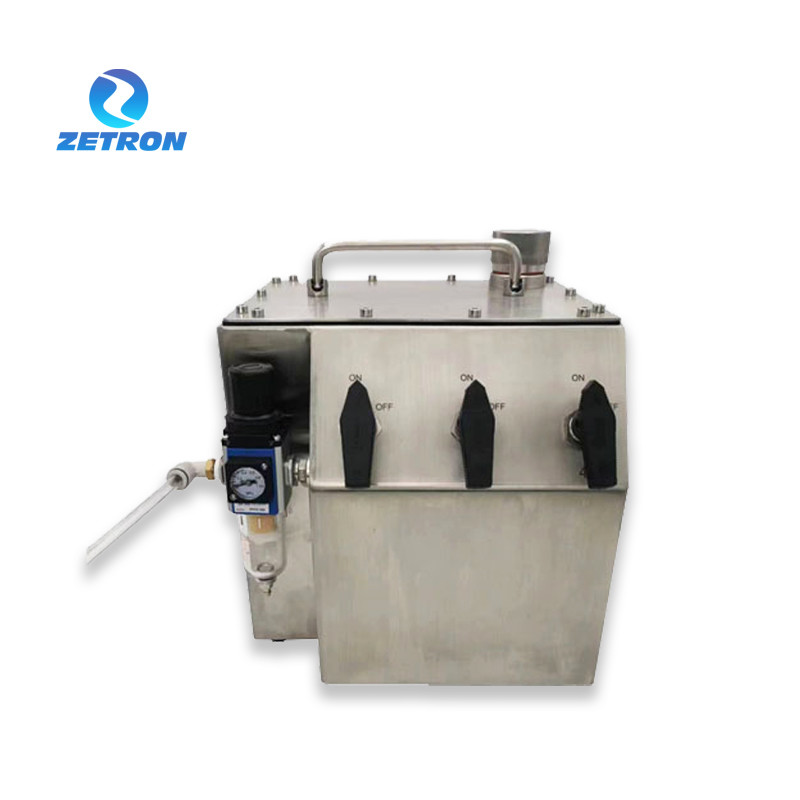

AG-4B Portable Aerosol Generator



OVERVIEW



AG-4B is the latest lightweight stainless steel condensation shock generation generator manufactured by our company. It only needs clean compressed gas to generate poly disperse particles.
AG-4B aerosol generator has 7 pulling nozzles. The aerosol concentration is approximately 100ug/L at a pressure of 0.14MPa and an air flow rate of 13000m3/h. Three adjustment valves adjust the instrument to provide different ranges of aerosol particle concentrations using 1 to 7 nozzles.
AG-4B is usually used to test high efficiency filter systems with air flow rates no greater than 13,000m3/h. It is more applicable to high efficiency filter units, negative pressure filtration devices, biosafety cabinets and other equipment.

PARAMETER

Air flow range
80-13000m3/h
Suspended particle concentration
10μg/L
Produce type
1 to 7 Laskin Nozzle Nozzle
Occurring particles
PAO, DOP, DEHS, polydispersed
Type of gas
Particles of various diameters (cold)
Size
280*260*252mm
Weight
10Kg

Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles 0
Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles 1
Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles 2
Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles 3
Ag-4b Lightweight Small Particle Aerosol Generator With Multiple Nozzles 4
