Air Or Neutral Gas Differential Pressure Transmitter In Electronics Pharmaceutical Biotechnology

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number DP-25
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Differential Pressure Transmitter Power DC12~24V/100mA
Protection Grade IP65 Size 90×90×30 (mm)
High Light

air differential pressure transmitter

,

electronics differential pressure transmitter

Leave a Message
Product Description

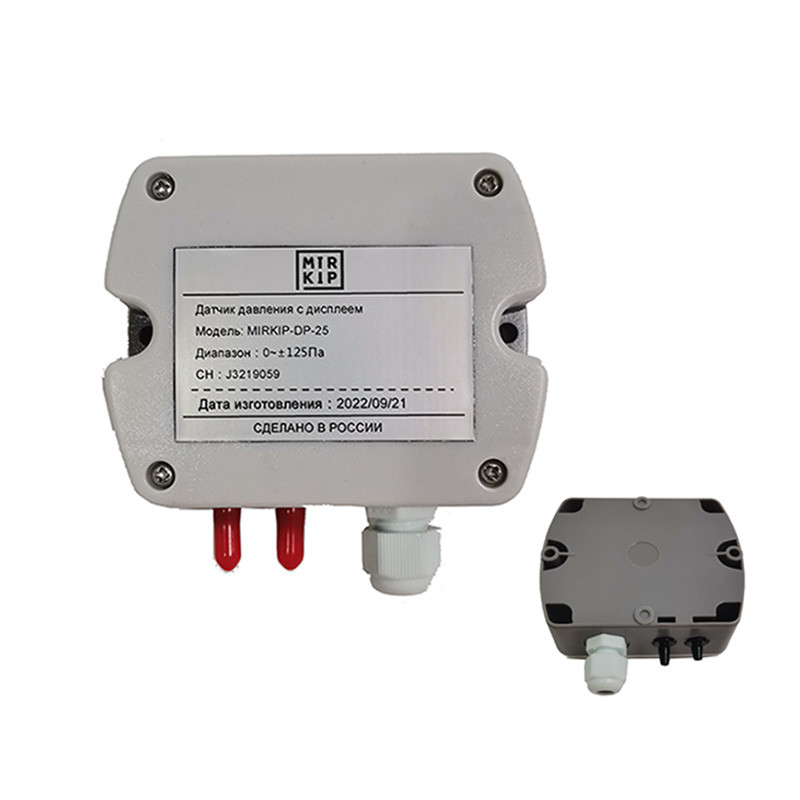

DP-25 Differential Pressure Transmitter



OVERVIEW



The DP-25 Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. differential pressure transmitter can quickly measure the differential pressure of air or non-corrosive gases and display the differential pressure digitally with a 4-bit LCD liquid crystal.



FEATURES & BENEFITS



●Meets the GMP standards for clean rooms and the EU and FDA standards.

●4 LCD liquid crystal display, intuitive reading, clear.

●Reasonable structure design, compact size, and convenient installation.

●RS485, 4-20mA, 0-5V or 0-10V multiple output options.
●Standard MODBUS RTU 485.
●The site can directly adjust the zero.
●According to customer-specified requirements customized range, flexible and convenient.
●Anti vibration, low drift.
●Add complex filtering algorithm, the degree is more stable.
●The instrument selects TE (Tyco) high-precision differential pressure sensor
●A variety of range specifications are optional
●Advanced circuit design and structure design
●Stable and reliable quality
●High test accuracy clear display numbers

SPECIFICATION



Range Accuracy Pressure Resolution
0-±125Pa ±0.6Pa 100psi 0.1Pa
0-±250Pa ±1Pa 100psi 0.1Pa
0-±500Pa ±1.25Pa 100psi 0.1Pa
0- 1000Pa ±2.5Pa 100psi 1Pa
0- 2500Pa ±6.25Pa 100psi 1Pa
0- 5000Pa ±12.5Pa 100psi 1Pa



Work environment Temp:-10~50℃ Humidity:≤85%RH
Output load Voltage type output is more than 1000Ω, current type output is less than 500Ω
Measurement medium Air or neutral gas
Size 90×90×30 (mm)
Protect level IP65
Power DC12~24V/100mA



Air Or Neutral Gas Differential Pressure Transmitter In Electronics Pharmaceutical Biotechnology 0



APPLICATION



It can be widely used in electronics, pharmaceutical, biotechnology, aerospace and other production, and scientific research departments, It is an ideal instrument for pharmaceutical enterprises and quality supervision departments to implement GMP standards and strengthen production environment management.



Air Or Neutral Gas Differential Pressure Transmitter In Electronics Pharmaceutical Biotechnology 1
