Automatic 0.1pa Filter Integrity Tester Monitoring For Pharmaceutical Factory

Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number MFT-900
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Differential Pressure Resolution 0.1pa Display Method 10-inch Touch Color Touch Screen
Interface Ethernet USB RS485 Temperature Range -20'C~+40'C
History Record ≥5 Years Storage Weight 30 Kg
High Light

Automatic 0.1pa Filter Integrity Tester

,

Pharmaceutical Factory Monitoring Filter Integrity Tester

Leave a Message
Product Description

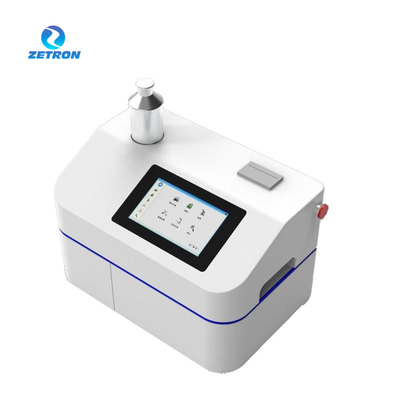

Packaging Leak Tester MFT-900

OVERVIEW



It is suitable for sealing integrity testing of pharmaceutical packaging to prevent moisture, oxygen, and microorganisms from contaminating products. Medicines: bottled, bagged, boxed, ampoules, vials, cartridges, prefilled needles (PFS), (BFS), (FFS), etc.


FEATURE

◎Comply with USP <1207>, ASTM F2338 standards and FDA standards.
◎Semi-automatic detection, suitable for small batch and multi-variety testing.
◎Non-destructive non-destructive testing, high accuracy, repeatability, and sensitivity.
◎The instrument is used for vacuum pressure difference detection.
◎The leak rate can be automatically converted into defect aperture μm.

TECHNOLOGY PARAMETER



Differential pressure sensor
±2kpa, error≤0.5%F.S.
Differential pressure resolution
0.1pa
Test pressure sensor
Error≤±1%F.S.
Test pressure range
-0.1~0.2MPa/-0.1~0.7MPa/-0.1~1.0MPa
Minimum detectable aperture
2μm ( for IV bag minimum 5μm)
Display method
10-inch touch color touch screen
Voltage
AC100V-240V, 50/60Hz, power ≤200W
Weight
Host: about 30kg
Audit trail
≥5 years of storage Multiple event logs, which can be queried according to time
Data backup
Support U disk to export data
Signal output
(4-20) mA, RS485, 12V alarm output
Interface
Ethernet USB RS485

Automatic 0.1pa Filter Integrity Tester Monitoring For Pharmaceutical Factory 0
