TA-1.0 High Precision Offline Total Organic Carbon Analyzer For Testing Pharmaceutical Water

Place of Origin German
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number TA-1.0
Minimum Order Quantity 1
Packaging Details Plastic box
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 100-260VAC 50HZ/60HZ,120W Conductivity Detection Range 0.055µs/cm-8.000µs/cm
Measure Range 0.001mg/L ~ 1mg/L(1 ~ 1000ppb) Temperature Range 1-99℃
Weight 8.5KG Dimension(mm) 400*240*270
High Light

High Precision Total Organic Carbon Analyzer

,

Offline Total Organic Carbon Analyzer

,

Testing Pharmaceutical Water Toc Analyzer

Leave a Message
Product Description

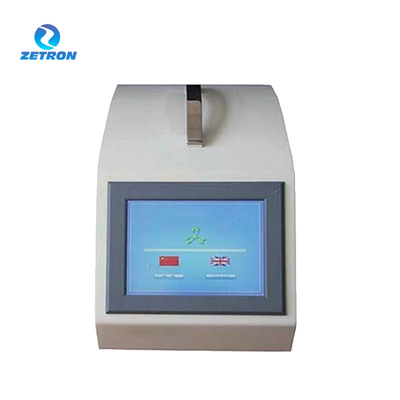

Total Organic Carbon Analyzer TA-1.0
OVERVIEW


TA-1.0 Total Organic Carbon (TOC) Analyzer is a high-precision offline total organic carbon analysis instrument. The product uses the electrical conductivity difference detection technology, adopting the principle of ultraviolet catalytic oxidation, with high accuracy and short response time. The instrument completely conforms to the requirements of the national pharmacopeia, and it can meet the offline testing requirements for deionized water such as pharmaceutical water (injection water and purified water) and ultrapure water.

FEATURE

※ There is no need for nitrogen, oxygen, acid reagent and oxidant, so the operation is simple and the cost is low;
※ The intelligentce level is high, as it is equipped with automatic sampler, and the system adaptability validation can be done automatically;
※ It has a limit alarm design, and when the test sample exceeds the prescribed limit, the instrument makes automatic  alarm;
※ It is in conformity with the test scheme as specified in the new edition of state pharmacopeia;

APPLICATION

On-line monitoring and laboratory testing of pharmaceutical water (purified water, injection water), and cleaning validation, electronic industry, food industry, etc.


TECHNOLOGY PARAMETER



Power Supply100-260VAC 50HZ/60HZ,120W
Conductivity Detection Range0.055µs/cm-8.000µs/cm
Measure Range0.001mg/L ~ 1mg/L(1 ~ 1000ppb)
Accuracy±3%
Repeatability≤ 3%
Resolution0.001mg/L
Response Time5mins
Measuring Limit0.001 mg/L
Sample Temperature1-99℃
Print FunctionExternal Printer
Data CopyUSB disk to export the data
Display ScreenColor Touch Screen
Weight8.5KG
Dimension(mm)400*240*270
Audit trailcustomization
