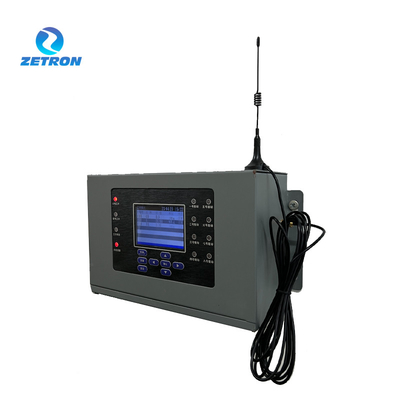

Zetron MIC2000-S Centralized Gas Alarm Controller Mini Type

  • Zetron MIC2000-S Centralized Gas Alarm Controller Mini Type
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC2000-S
Minimum Order Quantity 1 piece
Packaging Details paper carton
Delivery Time 5-8days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gas Alarm Controller Display Range Digital 0～99999
Display Accuracy ±0.1%FS High Power Consumption 2.5W/ Channel
Installation Method Wall-mounted Warranty 1 Year
High Light

Centralized Gas Alarm Controller

,

Zetron Gas Alarm Controller
You can tick the products you need and communicate with us in the message board.
Product name
Leave a Message
Product Description



MIC2000-M Mini Type Gas Controller Gas Alarm Control Panel With Fixed Gas Detector



OVERVIEW



The gas alarm controller is a centralized alarm controller for gas concentration monitoring and leakage. The power source is directly powered by the mains grid or battery. This alarm controller receives RS485 signal and 4-20mA, and temporarily can only receive RS485 signal output by our company's new online detector.



SPECIFICATION



Display range Number 0～99999
Resolution 1, 0.1, 0.01, 0.001 optional
Display accuracy ±0.1%FS
Display mode

High-definition color screen, six-channel simultaneous display or large-font single-channel circular display, more than six channels automatically or manually turn the screen and circular display
Control loop

standard is 4 channels, 1 public output, optional 8 channels, 12 channels, 16 channels control output
Output control

The standard is 4 groups of relay contact output (normally open/normally closed), contact capacity 3A, 32VDC or 3A, 220VAC, one set of common alarm output, contact capacity 12A, 32VDC or 7A, 240VAC
Automatic detection

line break/short circuit detection, various detector states, function detection, etc.
Working temperature -40℃～+70℃
Relative humidity

0～95%RH, used in non-condensing occasions, waterproof splash and short

-term rain, can be customized outdoor completely moisture-proof and rain-proof
Power source

220VAC/50Hz or 24VDC, 2A, 24VDC, 5A, 24VDC, 10A optional, according to the number of probes to choose
Maximum power consumption 2.5W/channel



FEATURES & BENEFITS



●Units available: PPM, LEL%, Vol%, mg/m3, ug/L, PPHM, ℃, RH%, Pa, kg, PSI, m/s
●4-20mA and RS485 can be input at the same time; data output supports standard MODBUS protocol options: 8-channel 4-20mA output, Ethernet module, PC monitoring software for upper computer, RS485/RS232 converter, USB-RS232 connection cable (PC without serial port needs this option)
●Modular structure design, the standard channel is 1 channel (up to 32 channels) with a 4-20mA input signal, at the same time can be connected to 255 channels RS485 input signal, more channels input signal can be customized, and the controller and the controller can communicate with each other.
