Zetron Ms104k-L10 Laser Methane Detector Portable Non Contact Detection For Ch4

Place of Origin China
Brand Name Zetron
Certification Ex
Model Number MS104K-L10
Minimum Order Quantity 1 piece
Packaging Details paper box
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Remote Laser Methane Gas Detector Operation Temperature -20 ~50 ℃
Target Gas Methane (CH4) Static Detection Limitation 5 Ppm*m
Size 170 X 52 X 52 Mm Weight 0.38kg
Maximum Detection Distance 50m Battery Li-ion, 8 Hours
Software Phone And PC
High Light

non contact laser methane detector

,

ch4 laser methane detector

,

zetron methane laser detector

Leave a Message
Product Description

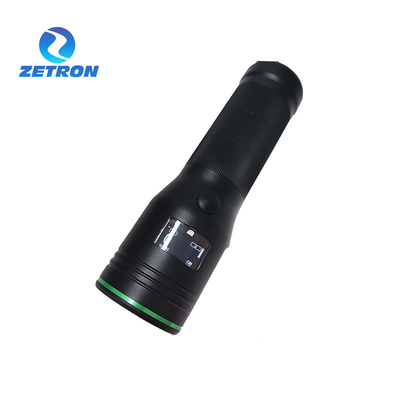

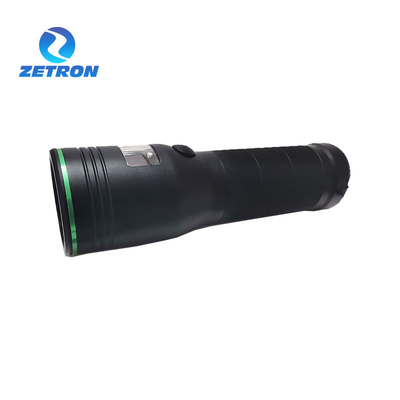

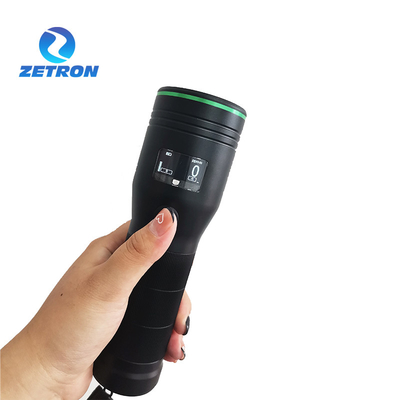

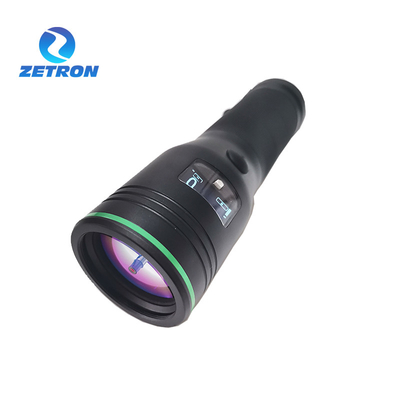

MS104K-L10 Remote Laser Methane Gas Detector



OVERVIEW


MS104K-L10 Laser methane detector is a gas detection device for remote measurement of methane gas. The device emits two laser beams simultaneously that a green indicator laser points to the detection target and the accompanying invisible infrared laser can measure the concentration of methane gas present remotely in the unit ppm.m. Widely used in city gas transmission and distribution pipelines, petroleum and petrochemical occasions.



FEATURES



・ The protection level of the whole series reaches IP68. Similar to the appearance of flashlight, it is easy to hold and use for a long time. It practices the concept of reliable tools in the hands of inspectors and emphasizes the perfect combination of ergonomics and high performance.



・ Equipped with auxiliary sight to accurately locate the target under strong light. Multi-functional bracket and grip, convenient for high-rise detection and carrying electric vehicle, tripod and other accessories.



・ The endurance of L series remote measuring instrument can reach morethan 8 hours. The fully integrated intelligent battery technology of chargeand discharge management can adapt to the ambient temperature and ensure the whole day's work in cold climate.



・ Supports the inspection APP. The Alpha One intelligent inspection system is easy to operate and powerful. It records the inspection path and alarm time in real time and automatically generates inspection reports. It supports iOS and Android system and can connect to the cloud information platform.



APPLICATION



1. Places inaccessible to personnel such as overhead pipelines and narrow spaces;

2. Indoor places with windows, such as residential kitchens and laboratories that use gas, can be detected directly through the windows;

3. Finding leaks of buried pipelines.



TECHNICAL PARAMETERS


Item: MS104K-L10
Measure Principle Laser Absorption Spectroscopy
Static Detection Limitation 5ppm.m
Respond Time 0.1s
Sample Frequency 100KHz
Measure Range 0-100,000ppm-m
Maximum Detection Distance 50m
Battery Li-ion, 8 hours
Software Alpha One
Detection Object Methane (CH4)
Laser for Detection Class I, eyesafe laser
Laser for Indicator Class IIIR, no direct vision or viewing
Protection Level IP68
Explosion Proof Exib IIA T4 Gb
Operation Temperature -20~50 degree
Operation Humidity <90%RH, no condensation
Size 170x52x52mm
Weight 0.38 kg
