Lithium Battery Oil Particle Count Testing Equipment For Hydraulic Oil And Lubricating Oil

Place of Origin China
Brand Name Zetron
Model Number OPC-P2
Minimum Order Quantity 1 pcs
Packaging Details carton
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OPC-P2 Portable Oil Particle Counter Light Source Semiconductor Laser
Sensitivity 0.1μm Cleaning Volume Can Be Set Between 0~90mL
Counting Accuracy <±5% Resolution ≤ 10%
Power AC100-240V, 50/60Hz Battery Capacity 5200mAh
Battery Running Time 6-8 Hours Overall Dimension 310*305*135mm
Instrument Weight 7.5kg
High Light

lubricating oil particle count testing equipment

,

110v oil particle count testing equipment

,

lithium battery hydraulic fluid particle counter

Leave a Message
Product Description

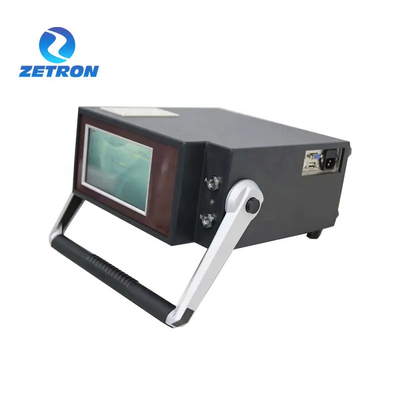

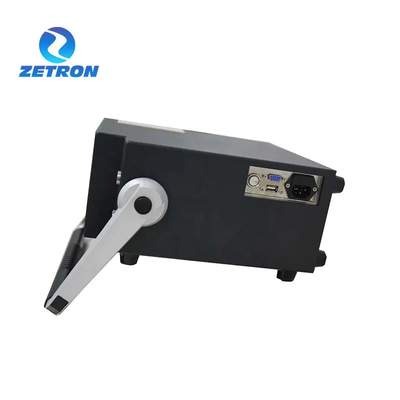

OPC-P2 Portable Oil Particle Counter



OVERVIEW


OPC-P2 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles’ size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.


FEATURES

* International Hydraulic Standards Committee specified light resistance (shading) method test principle

* High precision laser sensor, wide testing range, stable performance, low noise, high resolution

* High-precision two-way plunger pump sampling mode, adjustable sampling speed, high precision sampling volume

* The pipeline is made of 316L and PTFE materials, which can meet the testing of all kinds of organic solvents and oils.

* For laboratory or on-site measurement, built-in decompression device can be used for on-line high pressure measurement.

* External pressure chamber can be connected to form positive/negative pressure to realize the detection of high viscosity samples and sample degassing.

* Can use standard sampling bottles, sampling cups and other sampling containers, or directly connected to the hydraulic system, to meet the testing requirements of different industries.



APPLICATION SCENES



The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.



PRODUCT PARAMETERS



Light source
Semiconductor laser
Particle size range
0.8-600μm (depending on different sensors)
Sensitivity
0.1μm
Customized detection channels
8~64 channels optional, arbitrary setting of particle size size
Sampling volume
0.2-1000ml, interval 0.1mL
Sampling accuracy
better than ± 1%
Sampling speed
5-80mL/min
Cleaning speed
5-80mL/min
Cleaning volume
can be set between 0~90mL
Counting accuracy
<±5%
Resolution
≤ 10%
Repeatability
RSD<2%
Limit overlap error
12000-40000 grains/mL
Offline detection viscosity
≤100cSt (viscosity is too large optional air pressure chamber)
Pressure range
low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
On-line detection interval time
arbitrary settings
Testing sample temperature
0 ℃ ~ 80 ℃
Working temperature
-20℃~60
Storage temperature
-30℃~80
Screen size
7 inch
Power supply
AC100-240V, 50/60Hz
Battery capacity
5200mAh
Battery running time
6-8 hours
Overall Dimension
310×305×135mm
Instrument weight
7.5kg
