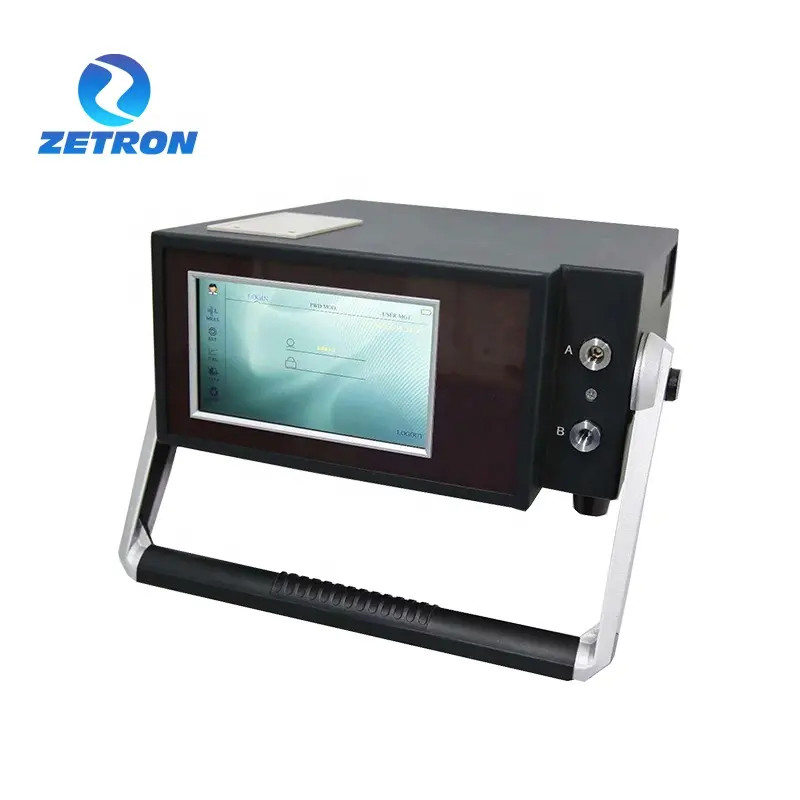

High Sensitivity 5200mAh Portable Oil Particle Counter Zetron OPC-P2

Place of Origin China
Brand Name Zetron
Model Number OPC-P2
Minimum Order Quantity 1 pcs
Packaging Details carton
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OPC-P2 Portable Oil Particle Counter Light Source Semiconductor Laser
Sensitivity 0.1μm Cleaning Volume Can Be Set Between 0~90mL
Counting Accuracy <±5% Resolution ≤ 10%
Power AC100-240V, 50/60Hz Battery Capacity 5200mAh
Battery Running Time 6-8 Hours Overall Dimension 310*305*135mm
Instrument Weight 7.5kg
High Light

high sensitivity portable oil particle counter

,

5200mah portable oil particle counter

Leave a Message
Product Description

Oil Particle Counter Used To Measure The Particles Size And Quantity In Oil Liquid



OVERVIEW


OPC-P2 Portable Oil Particle Counter adopts laser extinction technology, is designed to measure the size and quantity of particles in oil liquid. It is suitable for testing the contamination level of solid particles in hydraulic oil, lubricating oil, fireproof oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or battery.


FEATURES


* Built-in data analysis system, according to the standard automatically determine the sample grade, with automatic data processing, printing function

* Color touch screen operation, Chinese and English dual interface, with preset, input, modification, storage function, convenient and quick operation.

* RS232 interface, can be connected to a computer or laboratory platform for data processing, can also use USB for data storage.

* Built-in lithium battery, can be used without external power supply.



APPLICATION SCENES



All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.



PRODUCT PARAMETERS



Light source
Semiconductor laser
Particle size range
0.8-600μm (depending on different sensors)
Sensitivity
0.1μm
Customized detection channels
8~64 channels optional, arbitrary setting of particle size size
Sampling volume
0.2-1000ml, interval 0.1mL
Sampling accuracy
better than ± 1%
Sampling speed
5-80mL/min
Cleaning speed
5-80mL/min
Cleaning volume
can be set between 0~90mL
Counting accuracy
<±5%
Resolution
≤ 10%
Repeatability
RSD<2%
Limit overlap error
12000-40000 grains/mL
Offline detection viscosity
≤100cSt (viscosity is too large optional air pressure chamber)
Pressure range
low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
On-line detection interval time
arbitrary settings
Testing sample temperature
0 ℃ ~ 80 ℃
Working temperature
-20℃~60
Storage temperature
-30℃~80
Screen size
7 inch
Power supply
AC100-240V, 50/60Hz
Battery capacity
5200mAh
Battery running time
6-8 hours
Overall Dimension
310×305×135mm
Instrument weight
7.5kg
