Metallurgy Machinery Fields Hydraulic Oil Particle Counter For Lubricating Oil Or Anti Fuel Oil

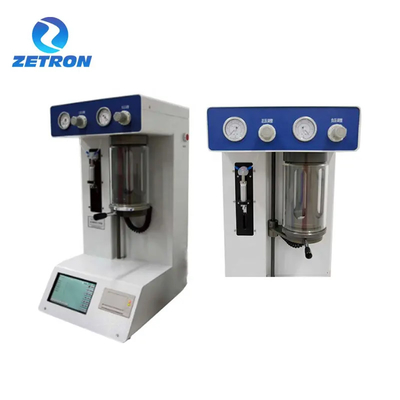

OPC-L2 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles’ size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.

* Adopting the counting principle of photoresist (shading) method formulated by the International Hydraulic Standard Committee

* High-precision laser sensor with wide testing range, stable performance, low noise and high resolution.

* Adopt high pressure syringe pump sampling mode, can set the sampling volume, stable sampling speed, high sampling accuracy.

* Positive and negative pressure combination of sampling system, can realize the sample degassing, suitable for different viscosity of the inspection products testing.

* Built-in pressure sensor, you can set the pressure value, and automatically determine the air pressure in the chamber to ensure safety.

* Built-in air purification system to ensure that the test is not contaminated

* Built-in multiple calibration curves, compatible with all common domestic and international standards for calibration.

* Built-in GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059cpc, SAE4059F, SAE749D, ГOCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018 and other more than ten commonly used standards. One test can give the data results under all built-in standards.

* Supports customized standard testing and grade determination

* Up to 64 testing channels can be set up at the same time according to customers' needs.

* Built-in data analysis system, a test can give all the standards of the test data and contamination levels

* Built-in viscosity, moisture and temperature sensor module, in the accurate testing of particle distribution at the same time to provide viscosity, moisture content saturation and ppm values and temperature reference values (optional)

* Any particle size can be set, with 9999 built-in particle sizes for easy particle size analysis.

* A variety of sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries

* Full-featured automatic color touch screen operation, support for Chinese and English dual interface, easy to operate

* Single-channel and multi-channel calibration can be carried out to realize the automatic calibration function.

* With RS232 interface, can be connected to a computer or laboratory platform for data processing.

* With massive data storage, printing function, can store 1000 groups of data and support U disk storage data.


OPC-L2 oil particle counter can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
