Zetron PTM600-Bio Digital Remote Gas Detector within The Gas Plume in order to Detect a Leak

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number PTM600-Bio
Minimum Order Quantity 1
Packaging Details Plastic case
Delivery Time 3-7 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Oxygen And Hydrogen Sulfide Pump Exhaust Biogas Analyzer Model Number PTM600
Type Biogas Analyzer Detecting Gas CH4, CO2, O2, H2S
Display Mode 3.5 Inch Color Screen Sensor Type Infrared Sensors Imported
Connection Wi-Fi/USB Network Size 230*210*120 Mm (L*H*W)
Weight 2.5(kg)
High Light

color screen portable biogas analyser

,

ce iso portable biogas analyser

,

color screen biogas analyzer portable

Leave a Message
Product Description

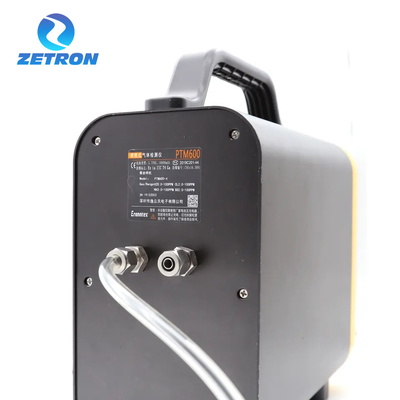

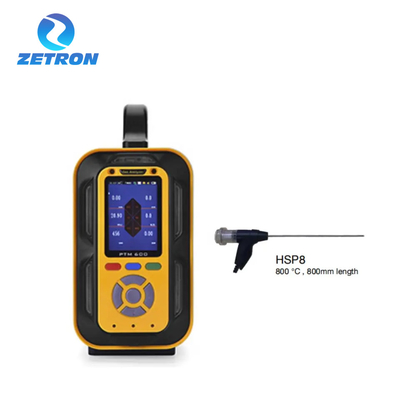

PTM600-Bio Portable Biogas Analyzer

OVERVIEW
PTM600-Bio designed to meet Global Renewable Energy and Carbon Credit digester project requirements, it is the ideal field instrument for anaerobic digester gas analysis. Easy-to-use and portable, the PTM-Bio measures gas composition and flow with repeatable accuracy on farms, food processing plants and waste water treatment facilities.
FEATURES
* Fast and efficient gas detection function
* Rich human-machine interface
* Large data storage &multi-storage
* Powerful andonvinent humanized function
* Multiple optional function meet peasonlized need
APPLICATION SCENES

PTM600 can be used in accurate detection and analysis of a variety of gas concentration and measurement of environmental temperature and humidity. It adopted advanced electric circuit design, mature kernel algorithm processing, unique external appearance design, had achieved a number of patents about the software works, external appearance, and so on. It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.

SPECIFICATION



Gases to be detected Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Optional configuration: temperature and humidity measurements.
Detection range 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution 0.01ppm or 0.001ppm (0 ~ 10 ppm)
0.01ppm (0 ~ 100 ppm)
0.1ppm (0 ~ 1000 ppm)
1ppm (0 ~ 10000 ppm or more)
0.01 mg/l (0 ~ 200 mg/l)
0.1% LEL
0.01%LEL
0.001% Vol
Detection principle Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error ≤±2% F.S (other or higher precision levels can be customized)
Linearity ≤±2% Repeatability ≤±2% Uncertainty ≤±2%
Response time T90≤20 seconds Recovery time ≤30 seconds
Working environment Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Power supply 3.6VDC, 10000mA high capacity rechargeable polymer battery
Display mode 3.5-inch high-definition color screen
Alarm mode It is possible to set as sound & light alarm, vibration alarm, turning off the alarm.
Protection level IP66
Explosion-proof mark Exia II CT6
Exterior dimensions 230×210×120 mm (L×H×W)
Weight 2.5Kg
