Zetron B110 Laser Particle Counter Size Range 0.1 Micro Meter 28.3L/M Flow For AR Glass & Semiconductor Chip Manufacturi

Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number B110
Minimum Order Quantity 1
Price USD 11500 ~12000 PER PCS
Packaging Details paper carton
Delivery Time 2-4 WEEKS
Payment Terms T/T
Supply Ability 10000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name B110 Laser Particle Counter Size Range 0.1 (μm)
Channel Thresholds 0.1,0.2,0.3,0.5,1.0,5.0(μm) Display Resistive Touch Color TFT
Light Source Laser Diode (30,000 Hours Mean Time Between Failure Sample Period 1~999s Adjustable
Communication Mode RS232 Self-Cleaning Time ≤10min
Size 250*215*220mm Weight 5.6kg
Leave a Message
Product Description

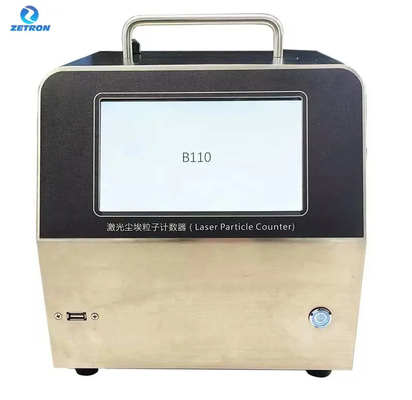

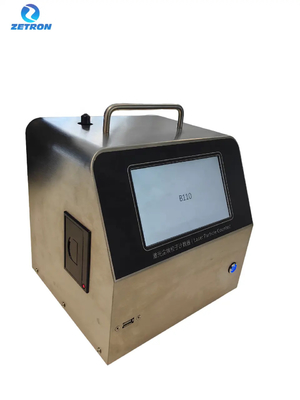

B110 Laser Particle Counter
OVERVIEW


The B110 Laser Particle Counter is a new type of portable particle counter that measures the size and number of air particles in a unit volume of air in a clean environment, with a minimum particle size range of 0.1 μm. The product features a very user-friendly interface, a high-resolution large-format colour touch screen, easy to operate and simple to use. At the same time, this instrument can simultaneously monitor the number of particles and their changes in 6 particle size channels.



FEATURES


* The six-grain channel can be displayed simultaneously, with a minimum particle size of 0.1μm.
* High-capacity data storage with a storage capacity of at least 100,000 units.
* Jolt high-resolution color touch screen.
* Printer: Built-in thermal printer.
* Category Three user management with standards.
* Data can be exported via USBdisk or printed directly.


SPECIFICATION



Model
B110 Laser Particle Counter
Size Range
0.1 (μm)
Channel Size
0.1, 0.2, 0.3, 0.5, 1.0, 5.0(μm)
Flow Rate
28.3L/min
Concentration Limits
35,000/L @10% count loss
Light Source
Laser diode (30,000 hours mean time between failure
Dimensions
250*215*220mm (wxhxd)
Weight
5.6kg
Sample Period
1~999s adjustable
Calibration Count Mode
Meets ISO 14644 calibration, GMP-2010
Data Storage
100,000 units, Data can be exported via USB disk or printed directly
Communication Mode
RS232
Storage Environmental Temperature & Humidity
Temperature: -15~60℃;
Humidity: 0~98% (not condensation)
Working Environment
Temperature: 5~35℃; Humidity: 20~95%(not condensation)
Display
Color TFT touch screen display
Reports
Pass/fail report wizard for ISO-14644 & FS-209E report formats
Self-Cleaning Time
≤10min
Gear Counting Efficiency
50±20%
Enclosure
304 stainless steel
Printer
Built in thermal printer
Power
220V ± 10%; built-in lithium battery, battery life >3h
Language
English/Chinese/Customize
Standard Configuration
Packing box, operation manual, factory calibration report, source line, sampling frame, printing paper, etc



Application



Instruments can be widely used in electronics, optics, chemistry, food, cosmetics, medical and health, biological products, aerospace and other departments.
