Zetron B110 6-Channel Portable Laser Particle Counter For 0.1 ΜM Size Range Detection Built In Thermal Printer

Place of Origin CHINA
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number B110
Minimum Order Quantity 1
Price USD 11500 ~12000 PER PCS
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Channel Thresholds 0.1, 0.2, 0.3, 0.5, 1.0, 5.0(μm) Light Source Laser Diode (30,000 Hours Mean Time Between Failure)
Concentration Limits 35,000/L @10% Count Loss Weight 5.6kg
Language English/Chinese/Customize Size Range 0.1 (μm)
Flow Rate 28.3L/min Printer Built In Thermal Printer
Leave a Message
Product Description

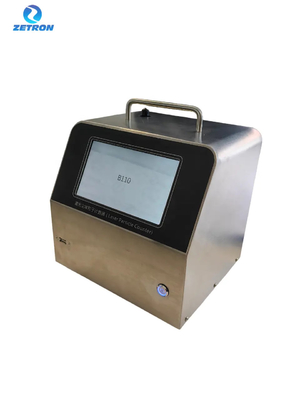

B110 Laser Particle Counter



Product Description



The B110 Laser Particle Counter is a cutting-edge, portable device designed to measure the size and quantity of air particles in a clean environment. With a minimum measurement range of 0.1 μm, this innovative particle counter provides accurate and detailed results for any unit volume of air.

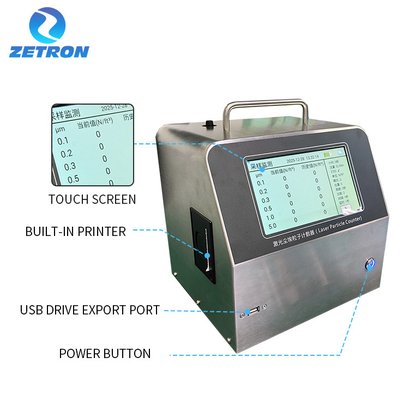

Equipped with a highly user-friendly interface, the B110 features a high-resolution, large-format colour touch screen. This allows for easy navigation and quick access to data, making it simple to operate for both beginners and experts alike.

One of the key features of this instrument is its ability to monitor particles and their fluctuations in 6 different size channels simultaneously. This allows for a comprehensive understanding of the particle distribution in the air, providing valuable insights for maintaining a clean environment.



Features



The six-grain channel can be simultaneously displayed, with a minimum particle size of 0.1μm.

This device has high-capacity data storage, with a minimum storage capacity of 100,000 units.

Experience a clear and vibrant display with the jolt high-resolution color touch screen.

Equipped with a built-in thermal printer, this device allows for convenient printing capabilities.

Enjoy Category Three user management and adhere to standard protocols for a secure and efficient user experience.

Data can easily be exported via USBdisk or printed directly for your convenience.



Technical Parameters

The Model B110 Laser Particle Counter is a highly efficient and widely used tool for accurately measuring particle sizes. With a size range of 0.1 (μm), this device is capable of detecting even the smallest particles. It offers multiple channel sizes including 0.1, 0.2, 0.3, 0.5, 1.0, and 5.0 (μm), providing a comprehensive analysis of the particles present.



Equipped with a laser diode, this particle counter has a mean time between failure of 30,000 hours, ensuring its reliability and longevity. Its dimensions of 250*215*220mm (wxhxd) make it compact and easily portable, with a weight of only 5.6kg.

The B110 has a flow rate of 28.3L/min, and can detect concentrations of up to 35,000 particles per liter with a 10% count loss. The sample period can be adjusted from 1 to 999 seconds, providing flexibility in data collection. It also meets ISO 14644 calibration and GMP-2010 standards for calibration count mode.



Data storage is a breeze with a capacity of 100,000 units, which can be easily exported via USB disk or printed directly. The communication mode is RS232, allowing for easy data transfer. The storage environmental temperature ranges from -15 to 60℃, with humidity at 0 to 98% (non-condensation). In the working environment, the temperature ranges from 5 to 35℃, with humidity at 20 to 95% (non-condensation).



The B110 has a color TFT touch screen display and can generate pass/fail reports in ISO-14644 and FS-209E formats. The self-cleaning time is less than 10 minutes, ensuring minimal downtime. The gear counting efficiency is 50±20%, guaranteeing accurate results every time. The enclosure is made of 304 stainless steel, making it sturdy and durable. A thermal printer is built-in for convenient on-site printing. The power supply is 220V ± 10% and it also has a built-in lithium battery with a battery life of over 3 hours.



This particle counter offers the option to choose from English, Chinese, or customize the language. The standard configuration includes a packing box, operation manual, factory calibration report, source line, sampling frame, printing paper, and more.



Model
B110 Laser Particle Counter
Size Range
0.1 (μm)
Channel Size 0.1, 0.2, 0.3, 0.5, 1.0, 5.0(μm)
Flow Rate 28.3L/min
Concentration Limits 35,000/L @10% count loss
Light Source Laser diode (30,000 hours mean time between failure
Dimensions
250*215*220mm (wxhxd)
Weight
5.6kg
Sample Period 1~999s adjustable
Calibration Count Mode Meets ISO 14644 calibration, GMP-2010
Data Storage 100,000 units, Data can be exported via USB disk or printed directly
Communication Mode RS232
Storage Environmental Temperature & Humidity Temperature: -15~60℃;
Humidity: 0~98% (not condensation)
Working Environment Temperature: 5~35℃; Humidity: 20~95%(not condensation)
Display Color TFT touch screen display
Reports Pass/fail report wizard for ISO-14644 & FS-209E report formats
Self-Cleaning Time ≤10min Gear Counting Efficiency 50±20%
Enclosure 304 stainless steel Printer Built in thermal printer
Power 220V ± 10%; built-in lithium battery, battery life >3h
Language English/Chinese/Customize
Standard Configuration Packing box, operation manual, factory calibration report, source line, sampling frame, printing paper, etc





Applications





Instruments have a wide range of applications in various industries, including electronics, optics, chemistry, food, cosmetics, medical and health, biological products, and aerospace. These devices play a crucial role in ensuring accuracy and efficiency in the production and quality control processes of these industries.



Customization





Zetron B110 Airborne Particle Counter Customization Service

As a leading manufacturer of air quality monitoring equipment, Zetron is proud to offer customized services for our B110 Airborne Particle Counter. Our commitment to quality and innovation ensures that our customers receive the best possible product tailored to their specific needs.
