Zetron B110 Best Selling Laser Particle Counter 0.1 Micro Meter Size 28.3L Flow For AR Glass, Room Cleaning & Pharmaceut
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | B110 Laser Particle Counter | Size Range | 0.1 (μm) |
|---|---|---|---|
| Channel Thresholds | 0.1,0.2,0.3,0.5,1.0,5.0(μm) | Display | Resistive Touch Color TFT |
| Communication Mode | RS232 | Self-Cleaning Time | ≤10min |
| Size | 250*215*220mm (WxHxD) | Weight | 5.6kg |
| Printer | Built In Thermal Printer | Language | English/Chinese/Customize |
| Highlight | 28.3L Laser Particle Counter,AR Glass Laser Particle Counter,Best Selling Laser Particle Counter |
||
Product Description

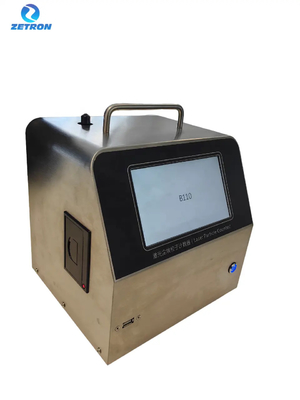

B110 Laser Particle Counter
OVERVIEW
With a minimum particle size range of 0.1 μm, the B110 Laser Particle Counter is a novel kind of portable particle counter that measures the size and number of air particles in a unit volume of air in a clean environment. The device has an extremely user-friendly interface, a large-format, color touch screen with great quality, and is easy to operate and use. This device has the capacity to concurrently track changes in the quantity of particles in each of the six particle size channels.
FEATURES
* The six-grain channel, with a minimum particle size of 0.1μm, can be shown simultaneously.
* High-capacity data storage with a minimum 100,000 units of storage available.

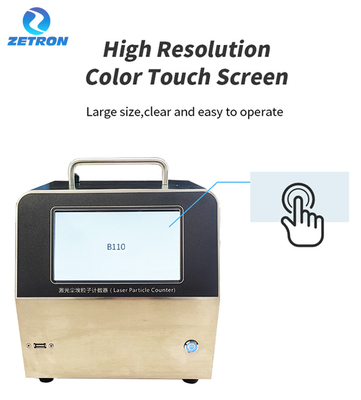

• Color touch screen with high resolution and jolt.
* Printer: Inbuilt thermal printer;
* Standard user management for Category Three users; Data can be instantly printed from or exported to a USB drive.
SPECIFICATION
|
Model
|
B110 Laser Particle Counter
|
||||
|
Size Range
|
0.1 (μm)
|
||||
|
Channel Size
|
0.1, 0.2, 0.3, 0.5, 1.0, 5.0(μm)
|
||||
|
Flow Rate
|
28.3L/min
|
||||
|
Concentration Limits
|
35,000/L @10% count loss
|
||||
|
Light Source
|
Laser diode (30,000 hours mean time between failure
|
||||
|
Dimensions
|
250*215*220mm (wxhxd)
|
||||
|
Weight
|
5.6kg
|
||||
|
Sample Period
|
1~999s adjustable
|
||||
|
Calibration Count Mode
|
Meets ISO 14644 calibration, GMP-2010
|
||||
|
Data Storage
|
100,000 units, Data can be exported via USB disk or printed directly
|
||||
|
Communication Mode
|
RS232
|
||||
|
Storage Environmental Temperature & Humidity
|
Temperature: -15~60℃;
Humidity: 0~98% (not condensation) |
||||
|
Working Environment
|
Temperature: 5~35℃; Humidity: 20~95%(not condensation)
|
||||
|
Display
|
Color TFT touch screen display
|
||||
|
Reports
|
Pass/fail report wizard for ISO-14644 & FS-209E report formats
|
||||
|
Self-Cleaning Time
|
≤10min
|
Gear Counting Efficiency
|
50±20%
|
||
|
Enclosure
|
304 stainless steel
|
Printer
|
Built in thermal printer
|
||
|
Power
|
220V ± 10%; built-in lithium battery, battery life ＞3h
|
||||
|
Language
|
English/Chinese/Customize
|
||||
|
Standard Configuration
|
Packing box, operation manual, factory calibration report, source line, sampling frame, printing paper, etc
|
||||
Application
Electronics, optics, chemistry, food, cosmetics, medical and health, biological goods, aerospace, and other areas can all benefit greatly from the usage of instruments.
