Zetron B110 New Laser Particle Counter 0.1 Micro Meter Size Range 28.3L Flow For AR Glass, Room Cleaning & Pharmaceutica
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | B110 Laser Particle Counter | Size Range | 0.1 (μm) |
|---|---|---|---|
| Channel Thresholds | 0.1,0.2,0.3,0.5,1.0,5.0(μm) | Display | Resistive Touch Color TFT |
| Communication Mode | RS232 | Self-Cleaning Time | ≤10min |
| Size | 250*215*220mm (WxHxD) | Weight | 5.6kg |
| Printer | Built In Thermal Printer | Language | English/Chinese/Customize |
| High Light | 28.3L Laser Particle Counter,Zetron Laser Particle Counter,0.1 Micro Laser Particle Counter |
||
Product Description

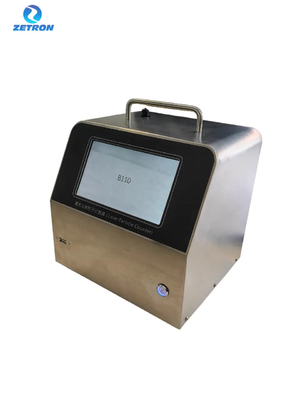

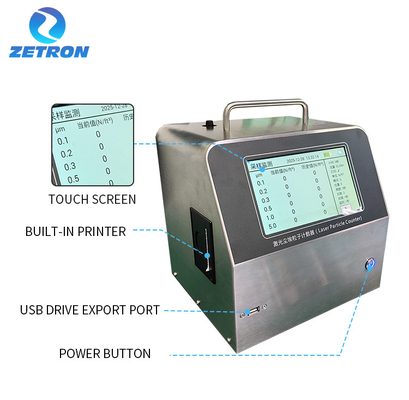

B110 Laser Particle Counter
OVERVIEW
With a minimum particle size range of 0.1 μm, the B110 Laser Particle Counter is a novel kind of portable particle counter that measures the size and number of air particles in a unit volume of air in a clean environment. The device has an extremely user-friendly interface, a large-format, color touch screen with great quality, and is easy to operate and use. This device has the capacity to concurrently track changes in the quantity of particles in each of the six particle size channels.
FEATURES
* The six-grain channel can be displayed simultaneously, with a particle size of 0.1μm.
* Large data storage capacity of at least 100,000 units.
* Jolt high-resolution color touch screen.
* Features include a built-in thermal printer and Category Three user management with standards.
* Data can be exported to a USB disk or printed directly.
SPECIFICATION
|
Model
|
B110 Laser Particle Counter
|
||||
|
Size Range
|
0.1 (μm)
|
||||
|
Channel Size
|
0.1, 0.2, 0.3, 0.5, 1.0, 5.0(μm)
|
||||
|
Flow Rate
|
28.3L/min
|
||||
|
Concentration Limits
|
35,000/L @10% count loss
|
||||
|
Light Source
|
Laser diode (30,000 hours mean time between failure
|
||||
|
Dimensions
|
250*215*220mm (wxhxd)
|
||||
|
Weight
|
5.6kg
|
||||
|
Sample Period
|
1~999s adjustable
|
||||
|
Calibration Count Mode
|
Meets ISO 14644 calibration, GMP-2010
|
||||
|
Data Storage
|
100,000 units, Data can be exported via USB disk or printed directly
|
||||
|
Communication Mode
|
RS232
|
||||
|
Storage Environmental Temperature & Humidity
|
Temperature: -15~60℃;
Humidity: 0~98% (not condensation) |
||||
|
Working Environment
|
Temperature: 5~35℃; Humidity: 20~95%(not condensation)
|
||||
|
Display
|
Color TFT touch screen display
|
||||
|
Reports
|
Pass/fail report wizard for ISO-14644 & FS-209E report formats
|
||||
|
Self-Cleaning Time
|
≤10min
|
Gear Counting Efficiency
|
50±20%
|
||
|
Enclosure
|
304 stainless steel
|
Printer
|
Built in thermal printer
|
||
|
Power
|
220V ± 10%; built-in lithium battery, battery life ＞3h
|
||||
|
Language
|
English/Chinese/Customize
|
||||
|
Standard Configuration
|
Packing box, operation manual, factory calibration report, source line, sampling frame, printing paper, etc
|
||||
Application
Electronics
Optics
Chemistry
Food
Cosmetics
Medical
Health
Biological products
Aerospace
Other departments
