R210 Remote Airborne Particle Counter For Real-Time Monitoring Built-In Pump

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Type | Online Particle Counter | Flow Rate | 2.83L/min |
---|---|---|---|
Explosion-proof | Laser Diode | Protection Grade | IP65 |
Size | 135×120×60(mm) | Weight | 0.9Kg |
Highlight | Built-In Pump Airborne Particle Counter,Real-Time Monitoring Airborne Particle Counter,Remote Airborne Particle Counter |
Product Description

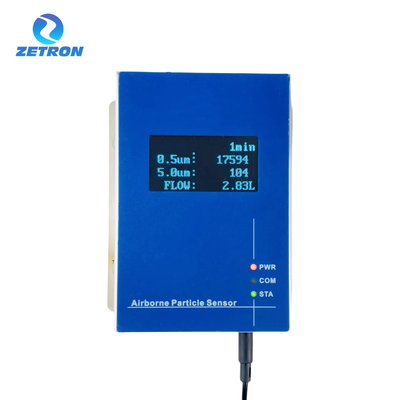

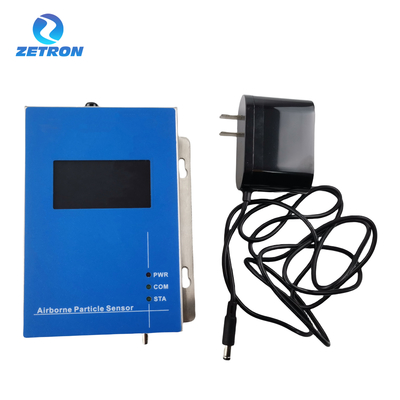

R210 Built-in Pump Online Particle Counter
OVERVIEW
R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.
R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.
If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.
R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.
If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.
FEATURES & BENEFITS
1. Reasonable structure design, compact size, easy installation
2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
3. sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
6. Using foreign original laser diode and vacuum pump, long service life
7. 2.4 inch OLED display, intuitive and clear reading
8. 316 stainless steel housing can be customized
9. Customizable explosion-proof sensor
2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
3. sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
6. Using foreign original laser diode and vacuum pump, long service life
7. 2.4 inch OLED display, intuitive and clear reading
8. 316 stainless steel housing can be customized
9. Customizable explosion-proof sensor
SPECIFICATION
Model
|
R200 (2.83L/min)
R300 (28.3L/min)
|
R210 (2.83L/min)
R310 (28.3L/min)
|
R310P
(28.3L/min)
|
Channel sizes
|
Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable) |
||
Display
|
X
|
Customizable
2.4 inch OLED
|
Display
2.4 inch OLED
|
Output
|
RS485(modbus)
|
RS485(modbus) or TCPIP(modbus)
(TCPIP has no extended output)
|
|
RS485(modbus)
Extended Output |
X
|
4-20mA(2 channels); 0-5V(2channels)
Relay(2channels); WiFi; LORA
|
|
Power Supply
|
12-24V
|
12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus)) |
|
Pump
|
External pump
|
Built-in pump(R210)
External pump(R310)
|
Built-in pump
|
Weight & Size
|
0.2-0.3Kg
106.5×76×49(mm)
|
0.9Kg
135×120×60(mm)
|
2.6-2.8Kg
217×250×138(mm)
|
APPLICATION
Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size, weight, and sleek handle, you can easily utilize this unit.
These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
Electronic Industry (semiconductor factory, precision machinery production and processing, etc); Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
