ZETRON R210 Portable Dust Particle Counter Sensor 2.83L/Min Or 0.1CFM Flow Rate

Place of Origin China
Brand Name Zetron
Certification ISO21501-4
Model Number R210
Minimum Order Quantity 1
Packaging Details alloy case
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Online Particle Counter Flow Rate 2.83L/min
Explosion-proof Laser Diode Protection Grade IP65
Size 135×120×60(mm) Weight 0.9Kg
High Light

0.1CFM Particle Counter Sensor

,

2.83L/Min Particle Counter Sensor

,

Portable Dust Particle Counter Sensor

Leave a Message
Product Description

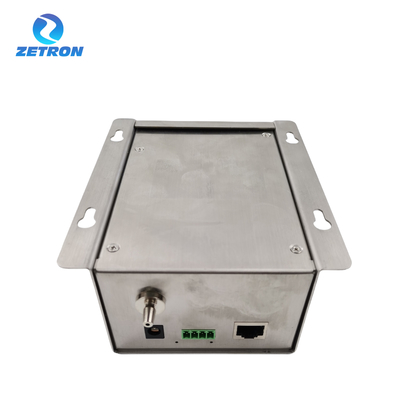

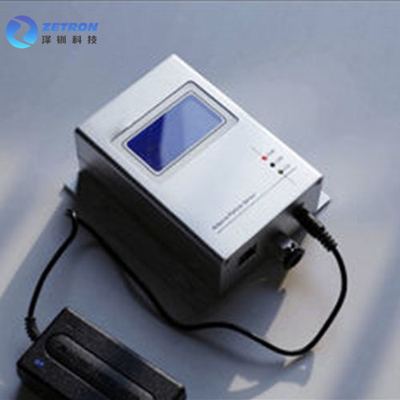

R210 Built-in Pump Online Particle Counter

OVERVIEW



R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.
R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4.
If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.




FEATURES & BENEFITS



1. Reasonable structure design, compact size, easy installation
2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
3. sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
6. Using foreign original laser diode and vacuum pump, long service life
7. 2.4 inch OLED display, intuitive and clear reading
8. 316 stainless steel housing can be customized
9. Customizable explosion-proof sensor




SPECIFICATION



Model
R200 (2.83L/min)
R300 (28.3L/min)
R210 (2.83L/min)
R310 (28.3L/min)
R310P
(28.3L/min)
Channel sizes
Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm
Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm
Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display
X
Customizable
2.4 inch OLED
Display
2.4 inch OLED
Output
RS485(modbus)
RS485(modbus) or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus)
Extended Output
X
4-20mA(2 channels); 0-5V(2channels)
Relay(2channels); WiFi; LORA
Power Supply
12-24V
12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus))
Pump
External pump
Built-in pump(R210)
External pump(R310)
Built-in pump
Weight & Size
0.2-0.3Kg
106.5×76×49(mm)
0.9Kg
135×120×60(mm)
2.6-2.8Kg
217×250×138(mm)









APPLICATION



Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size, weight, and sleek handle, you can easily utilize this unit.

These units provide immediate results that allow you to proactively monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes; Paint Booth; Aerospace Flight and Space; Hardware Manufacturing; Flat Panel Display Manufacturing; Medical Device Manufacturing
Electronic Industry (semiconductor factory, precision machinery production and processing, etc); Food Hygiene Industry (dairy products, plastic meat food, seasoning food, agricultural products, etc); Filter Manufacturers, inspection filter quality and efficiency, etc; and other areas of precision processing, precision testing required Clean Room (area), and other testing needs.
