Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4

  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
Place of Origin China
Brand Name Zetron
Certification ISO,CE,FCC, ROHS, CNEX
Model Number PTM600-EG
Minimum Order Quantity 1
Price $100-$5000
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T,Western Union,MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Zetron PTM600-EG Laser Methane And Ethane Detector Detected Gas Methane (CH₄) And Ethane C₂H₆
Measuring Range CH4: 0–100,000 Ppm; C2H6: 0–30,000 Ppm Measurement Method Pump-suction Type
Protection Level IP66 Maximum Sampling Flow Rate 1.5 L/min
Explosion-proof Certification Exib IIB T4 Gb
Highlight

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Zetron PTM600-EG TDLAS Portable Gas Analyzer for Natural Gas and Biogas Identification
Product Overview

The Zetron PTM600-EG Portable Laser Methane & Ethane Detector features cutting-edge Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, specifically designed for natural gas pipeline leak detection. Its unique capability to simultaneously monitor methane and ethane concentrations allows for precise differentiation between natural gas and biogas.

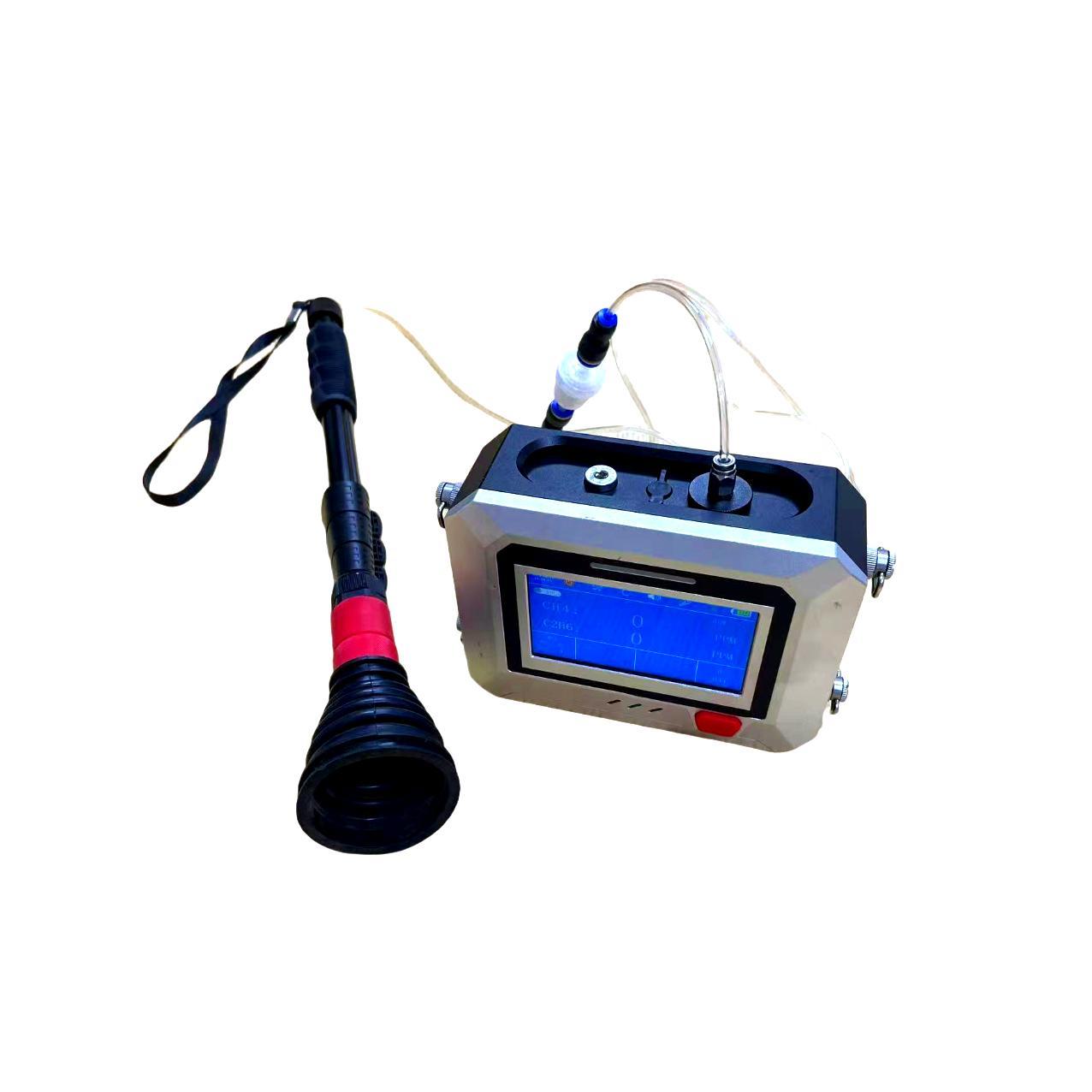

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 0
Key Features
  • Intuitive and User-Friendly: One-button start with a humanized touchscreen interface for simple and fast operation.
  • Multiple Range Modes: Provides full-range display in ppm, %LEL, and %VOL to cover diverse applications.
  • Long Service Life: Designed for up to 10 years of use, offering high return on investment.
  • Intrinsic Safety Design: Complies with stringent safety standards, suitable for potentially explosive environments.
Technical Specifications
Attribute Value
Model PTM600-EG
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas CH₄ and C₂H₆
Measuring range CH4: 0-100,000 ppm; C2H6: 0-30,000 ppm
Measurement method Pump-suction type
Operating time Battery life ≥10 hours, standby ≥24 hours
Operating humidity <90% RH (non-condensing)
Protection rating IP66
Dimensions 170 mm (L) × 70 mm (W) × 130 mm (H)
Applications

The PTM600-EG is an advanced portable solution for precise natural gas leak detection, combining high sensitivity with fast response. Its dual-gas detection capability enables simultaneous monitoring of methane and ethane, making it ideal for distinguishing natural gas from biogas.

Designed for diverse operational environments, it is perfectly suited for routine inspections of municipal pipelines, residential gas safety checks, and energy site monitoring. With robust IP66 protection and intrinsic safety features, the PTM600-EG performs reliably in challenging locations including long-distance transmission pipelines and special industrial environments.

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 1 Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 2
