Three Wavelength Open Path Infrared Gas Detector Dustproof 30-50m flame gas detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MIC-200-IR3 Three Wavelength Infrared Flame Gas Detector | Detection Distance | 30-50meters |
|---|---|---|---|
| Explosive Grade | Exd II CT6/DIP A20 TA, T6 | Protection Level | IP66 |
| Material | Aluminum Alloy, Surface Anticorrosive Paint Sprayed | Color | Red |
| Highlight | 106Kpa Open Path Infrared Gas Detector,30m Open Path Infrared Gas Detector,Dustproof Open Path Gas Detector |
||
Product Description

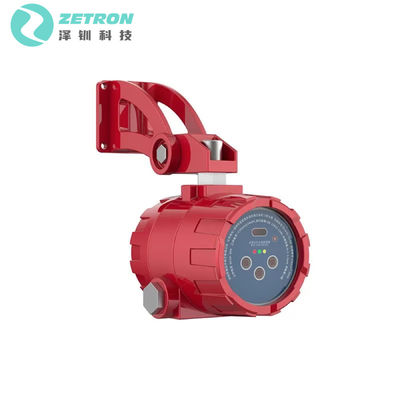

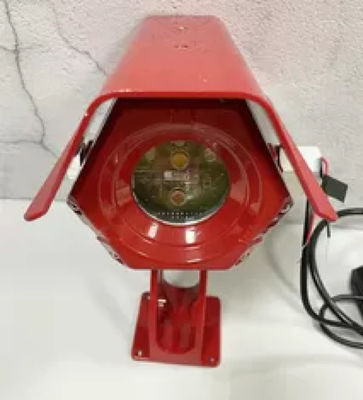

Zetron MIC-200-IR3 Three wavelength Infrared Flame Gas Detector
OVERVIEW
The MIC200 Three-band Infrared Flame Detector is a proven open path gas detection solution which aids in high speed detection of flammable gases such as Methane, Ethane, Ethylene, Butadiene in Short range (5 to 40m) distances comes with approved certification for ATEX.
The MIC-200-IR3 detector contains three narrow-band infrared sensors (4-6 microns) and optical filters, which have high sensitivity to carbon dioxide emission spectra (4.4 microns), which can effectively eliminate interference and achieve detection for a much longer distance.
SPECIFICATION
|
Response spectral range
|
4-5um
|
| Response time |
5--10s The response time of different media is different
|
| Viewing angle range |
90 °
|
| Detection distance |
30--50 meter (depends on the burning material)
|
| Ambient temperature |
-10 ~ 55 ℃
|
| Environmental humidity |
≤95% RH
|
| Pressure range |
86 ~ 106Kpa
|
| Working voltage | DC24V |
| Executive standard | GB15631-2008, GB3836- 2000 series |
| Explosion-proof grade |
EXdⅡCT6
|
| Protection grade |
IP66
|
| Signal output | 4~20mA three-wire system output |
| Installation method | wall or ceiling |
| Cable outlet thread | 20mm*1.5mm free conversion G1 / 2 optional |
| Dimensions |
19*16*11 cm
|
| Weight | 1.7 Kg |
| Advantages | dustproof, explosion-proof, corrosion-proof |
FEATURES & BENEFITS
- Developed by the principle of three- wavelength infrared detection, it has high immunity to false alarms;
- Excellent anti-radio frequency and electromagnetic interference performance;
- Reliable system fault self-diagnosis function;
- Two output modes of three-wire current loop and relay are optional;
- Patented signal processing algorithm to minimize the possibility of false alarms;
- Multi-level sensitivity settings to meet the different needs of more occasions;
- Easy to install, the detection angle can be adjusted by 360° ;
- ExdII CT6 explosion-proof grade, suitable for zone 1 and zone 2 hazardous locations
APPLICATION
The detector is suitable for liquid and gas fires, open flames with smoke and places where deflagration occurs.
• Offshore platforms & vessels (FPSO’s)
• Downstream chemical processing plants
• Gas transport and pipelines
• Large storage areas & buildings
• Perimeter detection
