xMeasurement Range | H 2 O: (0 ~ 40)% VOL O 2 : (0.1 ~ 25)% VOL Component | Repeatability | ±1%F.S. |
---|---|---|---|
Communication | RS485(standard) Or RS232(optional) | Power Supply | 24V DC, 50W |
Highlight | 5L/min Flue Gas Oxygen Analyzer,24V DC Flue Gas Oxygen Analyser,50W Humidity Analyzer |

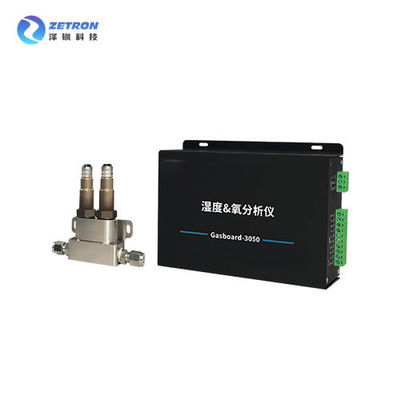

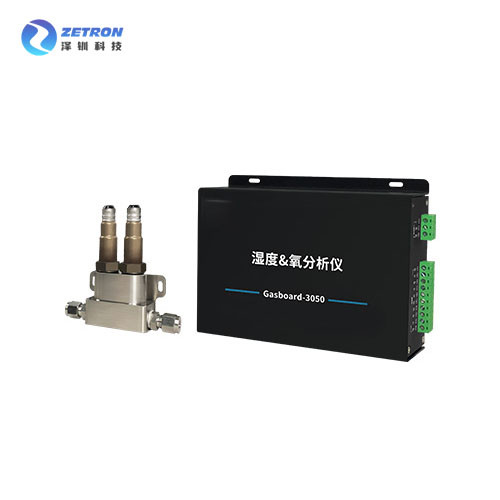

Flue Gas Oxygen Analyzer & Humidity Analyzer
The Humidity & Oxygen Analyzer Gasboard-3050 uses the principle of ceramic zirconia to measure the oxygen content and the content of oxygen and water (gaseous) mixed gas. According to the functional relationship between the oxygen content, the content of oxygen and water (gas) mixture and the sensor output signal, the humidity value and oxygen concentration value are calculated, and the humidity and oxygen concentration signals are output, which can provide an accurate basis for environmental humidity monitoring.
Gasboard-3050 features high accuracy, strong stability and long service life. It is a type of removable oxygen & humidity analyser, providing an ideal flue gas monitoring solution used in the condition of high temperature and humidity.
• Capable of measuring O2 & humidity simultaneously.
• Detector with heating function, to prevent water condensed on detector.
• Detector is made of stainless steel, corrosion resistant, which could be used in harsh conditions.
• Gasboard-3050 adopts the sensor of ceramic zirconia principle which is independently researched and developed by Cubic Ruiyi. The sensor has filter protection, capable of preventing PM/dust to block the detector and ensuring the accuracy of measurement.
• Designed 4~20mA analog output and RS232/RS485 communication interface, which ensures easy and convenient integration.
• With running indicator light and fault/alarm switch output, it can monitor the running status of the instrument in real time.
• In the industrial process, the safety and reliability of analyzer ranked first, Gasboard-3050 could be used in CEMS directly to satisfy the working condition of high temperature & high humidity. It could measure content of O2 and humidity precisely and without interference.
Measurement Principle | Ceramic zirconia |
Measurement Range |
H 2 O: (0 ~ 40)% VOL O 2 : (0.1 ~ 25)% VOL |
Precision |
H 2 O: ± 2% FS O 2 : ± 2% FS |
Repeatability | ±1%F.S. |
Stability | ± 1% FS / 7d |
Response Time | T 90 ≤30s |
Service Life for Detector | >2years (normally work) |
Measurement Component | N2, He, Ar and other inert gases, not include Si, Pb, HC and etc. |
Working Condition | |
Chassis | None-explosion-proof structure |
Working Type | Online |
Sampling Method | Removable/ventilated |
Power Supply | 24V DC, 50W |
Calibration Circle | Calibration every other year |
Ambient Temperature | (-10~+50)°C |
Ambient Humidity | <90%RH |
Sample Gas Temperature | <180°C |
Sample Gas Pressure | Atmospheric pressure ±10% (the air outlet should be atmospheric). |
Sample Gas Flow Rate | (1 ~ 5) L / min |
Detector Interface | G 1/8 internal thread |
Assembly Type | Analyzer: guide rail type Detector: wall mounted |
• It can be applied to the online measurement of flue gas humidity and oxygen content in the desulfurization and denitrification of the flue gas online continuous monitoring system CEMS.
• It can also be applied to wood, building materials, papermaking, chemical, pharmaceutical, fiber, textile, tobacco, vegetable, etc. Online humidity measurement and control for food processing, etc.
