UV Flue Gas Analyzer 200℃ Stainless Steel Heating Boiler Emission Gases Dual Beam Micro Flow Technology

  • UV Flue Gas Analyzer 200℃ Stainless Steel Heating Boiler Emission Gases Dual Beam Micro Flow Technology
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard 3800UV
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component SO2, NO, CO, CO2, HC And O2 Power Supply 220V
Flow Rate ≤60L/h Display LCD
Size 275*470*175mm Weight 7.5kg
High Light

UV Flue Gas Analyzer

,

220V Flue Gas Analyzer

,

ISO9001 Flue Gas Analyser
Leave a Message
Product Description

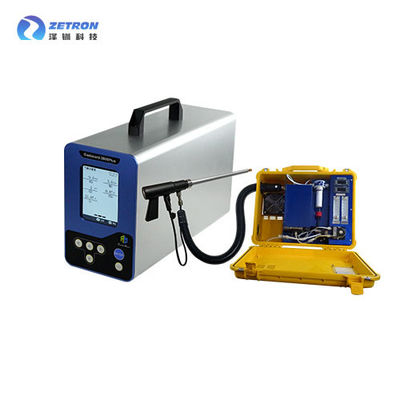

Portable UV Flue Gas Analyzer

OVERVIEW



　It is new portable type that adopts the UV DOAS, NDIR, and electrochemical technology to measure the concentration of SO2, NO, CO, CO2, HC, and O2 from stack or boiler emission gases, with optional gas temperature, velocity, combustion efficiency, air coefficient, etc.



FEATURES



Gas conditioning device features

　　1) Stainless steel heating type sampling probe, heating temperature up to 200℃.
　　2) The probe is equipped with SIC filter element for quick replacement.
　　3) Sampling probes are available in different lengths (1 or 2 meters) to suit various industrial applications.
　　4) Heating tube has a self-controlled temperature function to keep high temperature of 180℃, it can prevent SO2 gas condensation to lose value.
　　5) Originally imported diaphragm pump, flow rate ≤60L/h.
　　6) Gas-water separator to separate liquid water in the sample gas.
　　7) Original Peltier cooler removes gaseous water from sample gas.
　　8) Equipped with corrosion-resistant and pressure-resistant heat exchanger and independent digital PID controller.
　　9) After treating, sample gas dew point:≤4℃, dust accuracy: 0.1μm.

SPECIFICATION



General Parameter
Measurement SO2, NO, CO, CO2, O2
Technology SO2, NO, CO: Dual-beam micro-flow NDIRtechnology
  CO2: NDIR technology
  O2: long lifetime ECD technology
Range S02, NO: (0-500-2000)mg/m
  CO (0-5000)mg/m
  CO2,O2: (0-25) %
  (Note: Measurement range can be customized)
Resolution SO2, NO, CO: 1mg/m3
  CO2,O2 : 0. 01%
Precision SO2, NO, CO: 1mg/m3
Repeatability < 2%
Stability <2%S/24h
Response time (T90) 30s
Warm up time 5min
Communication interface USB, or Dot matrix printer
Power supply AC 220 v + 10%, 50 Hz
Inlet gas flow (0.7-1.2)L/min
Display LCD display
Working Environment
Work temperature 0-50 ℃
Relative humidit 5-85%
Ambient pressure 86-108kPa
Dimensions
Size 275mm*470mm*175mm
Weight 7.2 kg



APPLICATION



Boiler, furnace exhaust emission gas and combustion efficiency monitoring, cement production line process and security monitoring, CEMS integration.
