CH4 CO2 H2S O2 Portable Self Developed Infrared Biogas Analyzer

  • CH4 CO2 H2S O2 Portable Self Developed Infrared Biogas Analyzer
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number Gasboard-3200L
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Component CH4, CO2, O2, H2S Inlet Pressure 2kPa-50kPa
Gas Flow 0.7-1.2L / Min Work Temperature -10-40 Degree
Size 295*196*62mm Weight 5kg
High Light

Portable Biogas Analyzer

,

Infrared Biogas Analyzer
Leave a Message
Product Description

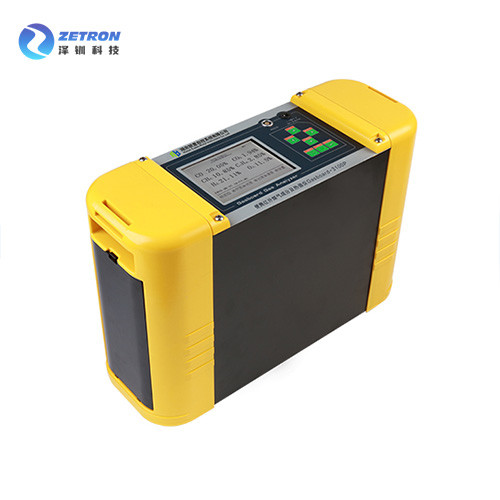

Portable Infrared Biogas Analyzer

OVERVIEW



Gasboard-3200L portable biogas analyzer is designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes, based on NDIR technology for CH4, CO2 gases, ECD technology for H2S and O2 gases. This model can be powered by lithium battery ensure easy carrying among different measuring points.





FEATURES



• Measures CO2, CH4, O2, H2S gases with customized measure range
• Modular sensor design ensures easy on operation and maintenance
• Self-developed gas conditioning device to remove vapor and dust in biogas for analyzer’s protection in long term operation
• Built in rechargeable lithium battery for easy carrying
• Stores and downloads readings available.



SPECIFICATION



General Parameter
Measurement CO2, CH4, H2S, O2
Technology CO2, CH4(NDIR)
  H2S, O2(ECD)
Range CO2: 0-50%, CH4: 0-100%
  H2S: 0-9999ppm, O2: 0-25%
  (Note: measurement range can be customized.
Resolution CO2, CH4, O2: 0.01%, H2S: 1ppm
Precision CO2, CH4: ≤1%FS
  H2S, O2: ≤2%FS
Repeatability CH4, H2S, CO2,O2≤1%
Gas flow 0.7 to 1.2 L/min
Inlet pressure 2kPa - 50 kpa
Sampling gas condition no dust, no water, no tar
Response time(T90) <10s (NDIR)
Communication interface RS-232
Power supply built-in rechargeable lithium battery
Working Environment
Work temperature 0-50 ℃
Relative humidity ≤95% non condensing
Ambient pressure 86-108kPa
Dimensions
Dimensior 295*196*62mm (L"WH)
Weight 5kgs



APPLICATION



Landfill, water treatment, CDM project ,anaerobic digestion and other fermentation processes.
