Online Infrared Syngas Analyzer 300ml/Min Nitrogen Purity Analyzer With Electrochemical Sensor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ZN311A Nitrogen Purity Analyzer | Measuring Range | 75%~99.9% N2 Optional |
|---|---|---|---|
| Sample Gas Flow | 300ml/min | Response Time | T90<15sec |
| Resolution | 0.01% | Size | 160x80x250mm |
| Weight | 1kg | ||
| High Light | Zetron Online Infrared Syngas Analyzer,CE Online Infrared Syngas Analyzer,300ml/Min Nitrogen Purity Analyzer |
||
Product Description

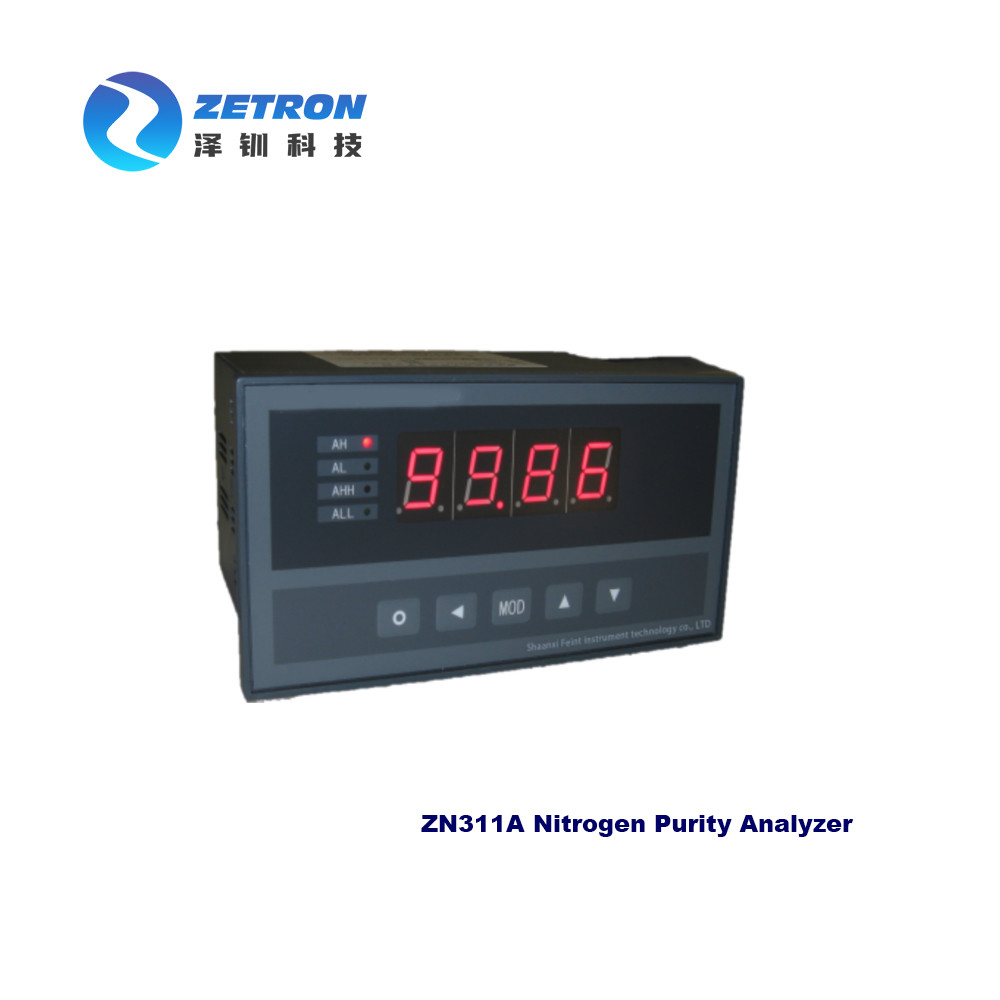

Zetron ZN311A Online Nitrogen Purity Analyzer
OVERVIEW
ZN311A Nitrogen Purity Analyzer is a new-type intelligent industrial online analyzer researched and developed by combining imported high-performance electrochemical sensor, which is used to detect oxygen and display nitrogen purity, with new microcomputer technology.
FEATURES
- Imported fuel cell sensor adopted, featuring long service life, high accuracy, and quick response;
- Small volume and lightweight, making the instrument especially suitable for places where the installation space is relatively small;
- Automatic range shifting; upper/lower limit alarm can be set at will within the whole range;
- Alarm point can be set at will within the whole range;
- RS232 or RS485 communication interface available for two-way communication with computer.
SPECIFICATION
|
Measurement range |
75～99.99% N2 optional |
|
Accuracy |
≤ ±2% F.S |
|
Stability |
Zero drift ≤ ±1% F.S/7d; |
|
Repeatability |
≤ ±0.5% |
|
Sample gas flow |
300±10 ml/min |
|
Response time |
90 ≤ 15 sec. |
|
Sample gas pressure |
0.05 MPa ≤ Inlet Pressure ≤ 0.1 MPa |
|
Resolution |
0.01% |
|
Contact capacity |
120 VAC, 1A 24 VDC, 1A |
|
Output signal |
4～20 mA |
|
Operating environment |
Temperature: －5℃～＋45℃; |
|
Operating power supply |
220 VAC±10%, 50 Hz±5% |
|
Overall dimensions |
160 mm (W) × 80 mm (H) × 250 mm (D) |
|
Mounting dimensions |
152 mm (W) × 76 mm (H) |
|
Weight |
About 1 kg |
APPLICATION
Detecting oxygen content in nitrogen production by air separation, chemical process, magnetic materials, and protective gases for high-temperature sintering furnaces and displaying it as nitrogen purity.
