OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser

Place of Origin China
Brand Name Zetron
Certification CE/Atex
Model Number ZN3101
Minimum Order Quantity 1 set
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name ZN3101 Online Zirconia Oxygen Analyzer Measuring Range 0.0~5.0%/10%/25% O2 Optional
Response Time T90< 5 Sec Resolution 0.1℃
Size 256x160x330mm Weight 4.5kg
Operation Temperature 700℃
High Light

Plug In Online Infrared Syngas Analyzer


OEM Online Infrared Syngas Analyzer


Zirconia Oxygen Analyser

Leave a Message
Product Description

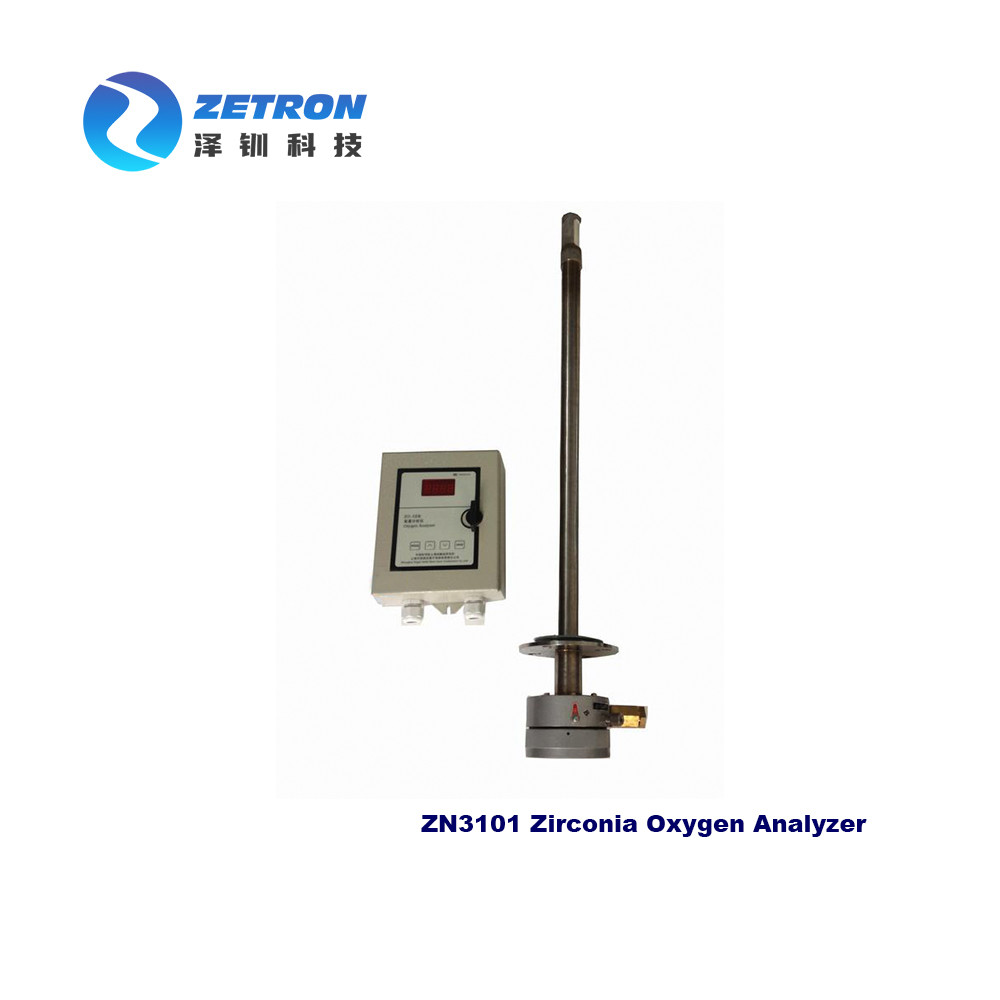

Zetron ZN3101 Plug-in High Temperature Zirconia Oxygen Analyzer



ZN3101 Zirconia Oxygen Analyzer (plug-in type) is composed of an intelligent signal converter with microprocessor as its core and a zirconia detector and used for online detection of oxygen content in the gas detected.

OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser 0




  • Zirconia detector adopted, featuring long service life, stable performance, and quick response;
  • Alarm point can be set at will within the whole range;
  • Alarm for out-of-control temperature;
  • Display switchable between oxygen content and operating furnace temperature.






Measurement range

 0.0~5.0%/10%/25% O2 optional


±2% F.S


≤ ±1.5%


Zero drift ≤ ±2% FS/7d;

Span drift ≤ ±2% FS/7d

Response time

90 ≤ 5 sec

Operating temperature


Preheating time

≤ 15 min

Output signal

4~20 mA

Operating environment

Temperature: -5℃~+45℃;
Humidity: ≤ 90% RH;

Operating power supply

1. 220 VAC±10%, 50 Hz±5%;

Overall dimensions of secondary meter

Panel-mounted: 160 mm (W) × 80 mm (H) × 250 mm (D);

Wall-mounted: 325 mm (W) × 250 mm (H) × 110 mm (D);

Mounting dimensions of secondary meter

Panel-mounted: 150 mm (W) × 75 mm (H);

Wall-mounted: 310 mm (W) × 128 mm (H);

Detector length

0.4 m, 0.6 m, 0.8 m, 1.0 m, 1.2 m, 1.5 m (optional)





Automatic analysis on oxygen content in the exhaust smoke from electric, metallurgical, heating, building material, electronic, power station, and industrial boilers and various combustion systems.

OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser 1




Q: What is your terms of payment ?
A:We accept trade assurance, western union ,Visa master card and tt.
Trade assurance can protect you, when you confirm the product then the money into my account.

Q: When do you reply to messages?
A: We will reply you for your inquiry in 24 hours.

Q: What is the warranty for your product ?
A: Warranty: 12 months, Lifetime maintenance

Q: When do you send the products? And how do you send it ?
A: For the small order, we will send out the goods with 5 days,If have stock ,we will send immediately.
We send them by ups, fedex, tnt or dhl. For big order, normal is 20 days will finish.

Q:Do you accept OEM or revised logo, color, model, size?
A:Yes, we accept OEM for the qualify buyer.We can make the products according to customer personal requirement.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: How about your after-sale service?
A: After sending, we will track the products for you , until you get the products.
When you got the goods, test them, and give me a feedback.
If you have any questions about the problem, contact with us, we will offer the solve way for you.
