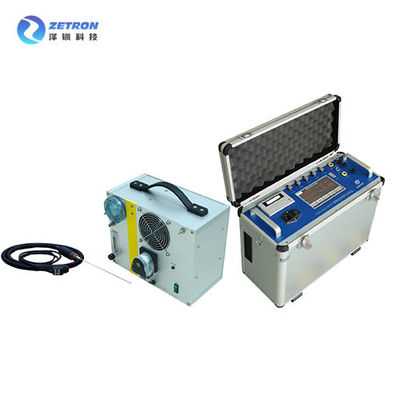

Micro Flow Control 2um Portable Infrared Gas Analyzer UV DOAS For Industrial Furnaces
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measurement Component | SO2, NO,CO,CO2,O2 | Filter Element | 2um |
|---|---|---|---|
| Power Supply | 220V | Power Consumption | 330W |
| Environmental Temperature | -40℃—140℃ | Pump | Sampling Pump And Peristaltic Pump |
| High Light | 2um Portable Infrared Gas Analyzer,UV DOAS Portable Infrared Gas Analyzer,ISO9001 Portable Infrared Gas Analyzer |
||
Product Description
Boiler Emission Monitoring System(Basic Rev.)
OVERVIEW
It adopts international leading UV DOAS technology, NDIR technology and long-life ECD technology, and is equipped with an integrated and automatic sampling pretreatment unit and control unit, Gasboard-9081 is suitable to simultaneously measure NO, SO2,O2, O2, CO and CO2 concentration in flue gas. It is an on-line monitoring device dedicated to boiler emission and energy efficiency control, which meets the emission regulatory requirements of national and local environmental protection departments.
FEATURES
• Integrate heated sampling probe and sampling hose.
• Built-in heated filter, prevent sampling loss.
• Max working temperature 200℃.
• Smart design, safe and reliable.
• Filter element: 2um
• Length: 3m
• Power supply: 220V
• Power consumption: 330W
• environmental temperature: -40℃-140℃
Gas analyzer features:
• Innovative micro-flow NDIR technology.
• Measure SO2, NO,CO,CO2,O2 and optional temperature, pressure and flow.
• Less interference of H2O for SO2 and NO measurement.
• Built-in zero pump and auto zero calibration with fresh air.
• Optional printer.
• Calculation of Lambda and combustion efficiency.
• Touch screen.
• USB output.
Gas conditioning system features:
• Efficient peltier dehumidifiers for humidity measurement of low concentrations.
• PID temperature control.
• Needle valve flow control.
• Built-in sampling pump and peristaltic pump.
• Built-in heated filter, prevent sampling loss.
• Max working temperature 200℃.
• Smart design, safe and reliable.
• Filter element: 2um
• Length: 3m
• Power supply: 220V
• Power consumption: 330W
• environmental temperature: -40℃-140℃
Gas analyzer features:
• Innovative micro-flow NDIR technology.
• Measure SO2, NO,CO,CO2,O2 and optional temperature, pressure and flow.
• Less interference of H2O for SO2 and NO measurement.
• Built-in zero pump and auto zero calibration with fresh air.
• Optional printer.
• Calculation of Lambda and combustion efficiency.
• Touch screen.
• USB output.
Gas conditioning system features:
• Efficient peltier dehumidifiers for humidity measurement of low concentrations.
• PID temperature control.
• Needle valve flow control.
• Built-in sampling pump and peristaltic pump.
SPECIFICATION
| General Parameter | |
| Measurement | SO2, NO, CO, CO2, O2 |
| Technology | SO2, NO, CO, CO2 (Micro-flow NDIR) |
| O2 (Electrochemical) | |
| Range | SO2: 0-2000ppm |
| NO: 0-2000ppm | |
| CO: 0-5000ppm | |
| CO2: 0-25% | |
| O2: 0-25% | |
| (Note: measurement range can be customized.) | |
| Resolution | SO2, NO, CO: 1ppm |
| CO2, O2: 0.01% | |
| Precision | SO2, NO, CO, CO2≤±2%,O2≤±3% |
| Repeatability | SO2, NO, CO, CO2, O2 ≤1% |
| Zero/Span drift | SO2, NO, CO, CO2≤±2%,O2≤±3% |
| Response time (T90) | <10s (NDIR) |
| Warm-up time | 30 minutes |
| Communication Interface | RS232 |
| Work temperature | 0-50 ℃ |
| Relaive humidity | 5-85% |
| Ambient prestsure | 86-108kPa |
| Power supply | AC 220V 50Hz±1Hz |
APPLICATION
Combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
