20mA Portable Dew Point Meter Analyzer 1500mL/min OEM accept

Place of Origin China
Brand Name Zetron
Certification CE/Atex
Model Number ZN104B
Minimum Order Quantity 1 set
Packaging Details paper box
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ZN104B Portable Dew-point Meter Measuring Range -100~+20℃ , -60~+60℃
Response Time T90< 3 Min Resolution 0.1℃
Size 256x160x330mm Weight 4.5kg
High Light

20mA Portable Dew Point Meter

,

1500mL/Min Portable Dew Point Meter

,

OEM Portable Dew Point Analyzer

Leave a Message
Product Description

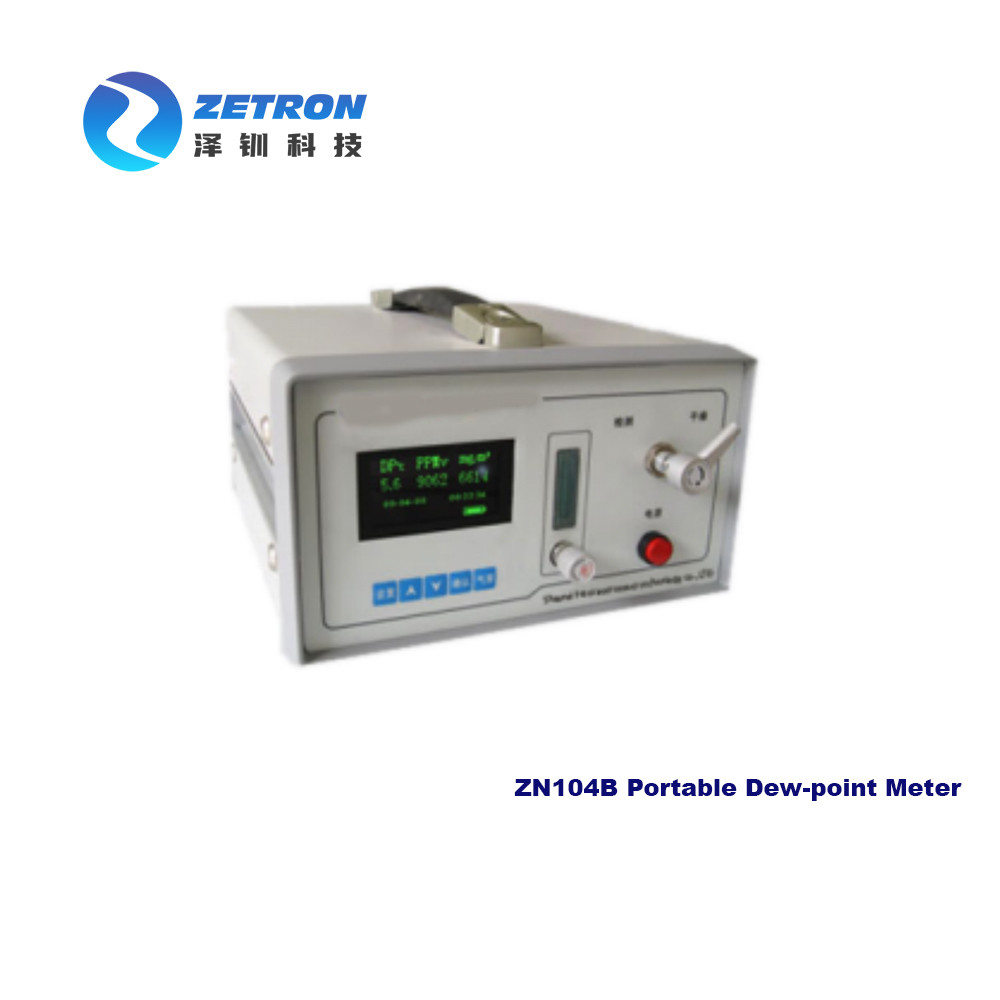

Zetron ZN104B Portable Dew Point Meter



OVERVIEW


ZN104B Portable Dew-point Meter adopts imported dew-point sensor with high response speed and sensitivity; it is powered by AC/DC and will be an intrinsically-safe explosion-proof instrument when powered by DC; the portable design makes operation easy and simple; the meter is applicable to the measurement of trace moisture content in various gases and suitable for a variety of cases requiring quick moisture content measurement and explosion protection.


FEATURES
  • Imported capacitive dew-point sensor featuring quick response and high sensitivity;
  • 128×64 lattice OLED display, self-luminous, with wide angle of view (above 160℃) and Chinese operation menu
  • Simultaneous display of dew point, volume ratio (PPm/V), and absolute humidity (mg/m3); intuitive readings eliminating the need for manual meter reading;
  • AC/DC power supply automatic switchable; lithium-ion battery available for continuous operation of over 12 hours once fully charged;
  • Automatic storage of measured data at a time interval that can be set at will; the recorded data can be displayed in the form of curve or list for the convenience of browsing and viewing;
  • Alarm point can be set at will within the range;
  • Built-in air extracting pump and external filter can be added upon selection.
SPECIFICATION







Measurement range

-100~+20℃ , -60~+60℃, intermediate range optional

Accuracy

≤ ±1.5℃ (above -60℃);

≤ ±2℃ (below -60℃);

Resolution

0.01%

Repeatability

≤ ±1%

Sample gas flow

31000~1500 mL/min

Response time

90 ≤ 3min

Sample gas pressure

0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa

Contact capacity

120 VAC, 1A 24 VDC, 1A

Output signal

4~20 mA

Operating environment

Temperature: -5℃~+45℃;
Humidity: ≤ 90% RH;

Operating power supply

1. 220 VAC±10%, 50 Hz±5%;

2. Rechargeable lithium-ion battery built in the instrument;

Overall dimensions

256 mm (W) × 160 mm (H) × 330 mm (D)

Weight

About 4.5 kg





APPLICATION



Petroleum and chemicals, natural gas, gases for industrial purposes, semiconductor industry, drying industry, food industry, electric power industry, mechanical manufacturing, air separation industry, and pharmaceutical industry.
