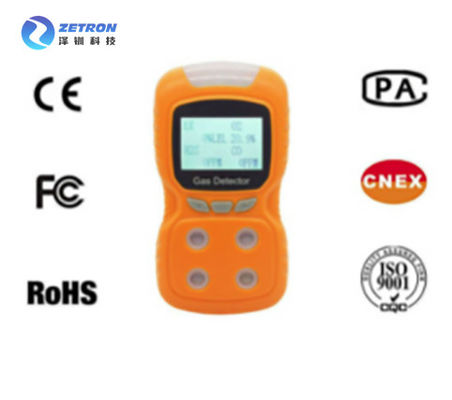

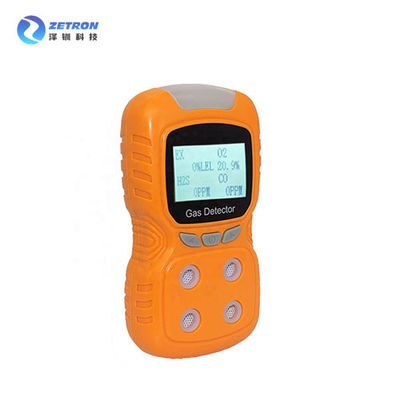

Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM

  • Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM
  • Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM
  • Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM
Place of Origin China
Brand Name Zetron
Certification CE
Model Number ZLT840
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/P, D/A, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Portable Multi Gas Detector Model Number ZLT840
Color Yellow Customized Support OEM, ODM, OBM
Weight 0.12(kg) Size 114*60*26mm (L*W*H)
High Light

Diffusion Type Portable Multi Gas Detector

,

ODM Portable Multi Gas Detector

,

OEM Diffusion Type Gas Detector
Leave a Message
Product Description
ZLT840 Diffusion Type
4 in 1 Toxic and Harmful Gas Detector



OVERVIEW

Providing protection for atmospheric hazards including oxygen, combustible and toxic gases, ZLT840 is unparalleled in its versatility, capability and overall value.
Continuously monitoring and displaying concentrations of gas, the compact and lightweight ZLT840 was designed and engineered with an extensive host of applications in mind.


Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 0

Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 1



FEATURES



①It is possible to simultaneously detect 4 types of gases, and the types for detection are more than 500 types.
②It is adopted advanced integrated circuit technology, embedded microcomputer control, high quality advanced imported gas sensor, with excellent sensitivity and repeatability.
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 2
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 3
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 4
• Large LCD display ,easily to read • Multi-language , support Chinese and English
• Multi alarm mode: Low & high alarm, sensor alarm, battery low alarm, automatic shutdown alarm
• Full function self-test confirms sensor, battery and circuitry integrity and audible/visual/vibrating alarms on activation
• Users can quickly understand the use and maintenance
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 5
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 6
①Smaller and 50% lighter than competitive instruments, this portable gas detector delivers
a high-level of protection wherever it’s needed.
②The shell is made of high strength engineering plastic, with good seismic resistance, dust proof,
water-proof and explosion-proof function.
③ Advanced self-examination and self-renovation function
④ Password management to avoid wrong operation

Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 7
Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 8



SPECIFICATION



Measuring gas
Combustible gas(Ex/LEL)
Oxygen (O2)
Hydrogen sulfide(H2S)
Carbon monoxide(CO)
Sensor
O2 /H2S / CO: Electrochemical Ex/LEL : Catalytic combustion
Measuring Type
Diffusion type
Optional
Sampling pump
Measuring range
0-100 ppm
0-1000 ppm
0-100% LEL
0-30%vol
Other ranges can be customized
Resolution
0.1 ppm
0.1 %LEL
0.1 %Vol
Other resolution can be customized
Response time
T90 ≤30 seconds
Recovery time
≤30 seconds
Accuracy
±3%FS
Repeatability
3%
Gas Temperature
Regular gas: -30 ℃ ~ + 70 ℃
Toxic gas: -20 ℃ ~ + 50 ℃
Humidity
10 ~ 95% RH
Display
Large LCD displays
Alarm
Voice Warning & Light
Size
0.15 Kg
Weight
135*65*35 mm
Explosion-proof
EXiaIICT4
Protection grade
IP 66
Battery
3.7VDC,2500mAh
Imported lithium batteries
Charing Time
≤6 hours ( USB charging)
Standard accessories
Manual, qualification certificate, warranty card, USB charger, instrument case




APPLICATION



The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology and other industries and places that need safety detection of toxic and harmful, explosion prevention.

The detector can effectively predict the concentration of dangerous gas alarm, to ensure that the safety of staff life is not threatened, production equipment is not lost.



Diffusion Type Portable Multi Gas Detector 4 In 1 EX O2 CO H2S OEM ODM 9

Tags:

Diffusion Type Gas Detector

ODM Portable Multi Gas Detector

Zetron Portable Multi Gas Detector
