Portable Four In One Toxic And Harmful Gas Detector IP65 4500mAh 8 Hours Charging Time
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 4 In 1 Multi Gas Detector | Gas | Ex/LEL/CH4/O2/CO/H2S（optional) |
|---|---|---|---|
| Data Storage | 100, 000 Entries | Response Time | <30s |
| Battery | 3.6V Li-on Battery, 4500mAh | Charging Time | 8 Hours |
| Protection Level | IP65 | Alarm Mode | Audible-visual Alarm,Vibration Alarm,Voice≥75dB@25cm |
| Highlight | 4500mAh Four In One Gas Detector,Zetron Harmful Gas Detector,IP65 Harmful Gas Detector |
||
Product Description

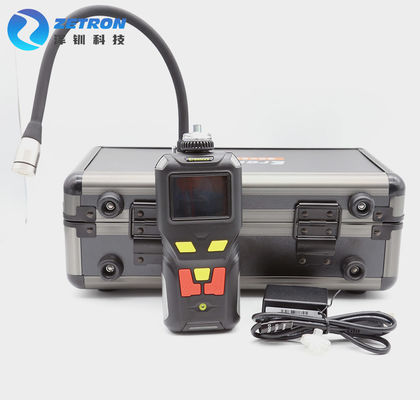

HiYi MS400 Portable Gas Detector
4 in 1 | Internal Pump | Large Data Storage
OVERVIEW
Clearance measurement was never this easy and convenient!
The MS400 measures up to 4 gases, including toxic, flammable gases and vapors, and oxygen all at once—either in pump or diffusion mode.
Innovative signaling design and handy wizard functions ensure complete safety throughout the process.
FEATURES & BENEFITS
- ★It is possible to simultaneously detect 1 ~ 4 types of gases, and the units can be switched freely . Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.
- ★Built-in pump-suction type measurement, built-in water vapor, dust filter, so as to prevent the damage of sensors and instruments due to the water vapor and dust.
- ★Rich human-machine interface
2.31-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on.
- ★Function of large-capacity data storage (capacity can be customized), multiple storage modes are supported, and RS485 communication is an optional configuration.
- ★High temperature gas detection (optional)
The optional high-temperature sampling and cooling filter handle or high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 400 ℃. The detection for the gases at higher temperatures can be customized.
- ★It is possible to switch among three display modes .
- ★Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
SPECIFICATION
| Gases to be detected |
Arbitrary combination of 1 ~ 4 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on. Optional configuration: temperature and humidity measurements. |
||||
| Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized. | ||||
| Resolution |
0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%Vol, 0.001% Vol |
||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years. | ||||
| Maximum allowable error | ≤±3% F.S (higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Linearity | ≤±2% | Linearity | ≤±2% |
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Temperature and humidity measurement | Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH | ||||
| Power supply | 3.6VDC, 4500mA high capacity rechargeable polymer battery | ||||
| Display mode | 2.31-inch high-definition color screen | ||||
| Communication interface | USB (charging and communication), optional: RS485 communication interface | ||||
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries | ||||
| Protection level | IP65 | ||||
| Explosion-proof type | Intrinsically safe type | ||||
| Explosion-proof mark | Exia II CT6 | ||||
| Exterior dimensions | 160×70×28mm | ||||
| Weight | 300 g | ||||
| Standard accessories | Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case, belt clip, humidity dust filter | ||||
| Optional items | Temperature and humidity measurement function, 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter), 0.4 meter stainless steel sampling handle (with dust filter, not retractable), high temperature sampling and cooling filter handle, high temperature humidity pretreatment system, multiple humidity dust filter, hanging rope, CD-ROM (upper level computer communication software) | ||||
APPLICATION
All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
