Industrial Oxygen O2 Fixed Single Gas Detector Waterproof IP65 For Mining Mine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fixed Gas Monitoring System | Gas | O2 |
|---|---|---|---|
| Ingress Protection | IP65 | Power | 24v Switching Power Supply |
| Explosion-proof Mark | ExdⅡCT6, Certificate Number: CNEx15.1283 | Repeatability | +/- 2% FSD Typically |
| Size | 23.3*20.5*6.5 Cm | Weight | 1Kg |
| High Light | Waterproof Fixed Gas Detector,IP65 Fixed Gas Detector,IP65 Industrial Gas Detector |
||
Product Description

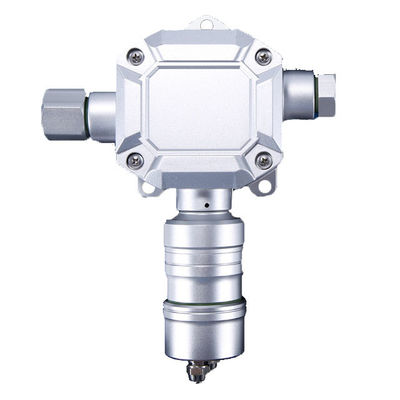

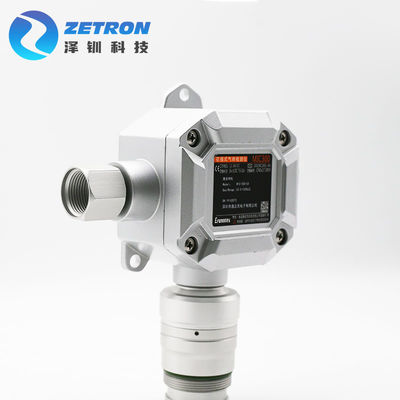

MIC300 Fixed Gas Monitoring System
Single Gas | Remote Control | Alarm
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types.
With a 4-20 mA analog output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Strong, durable, and explosion-proof shell and fluorocarbon surface treatment process are suitable for use at a variety of hazardous places and corrosive environments, it is wear-resistant.
Simple calibration procedure.
Easily integrated into a control system.
| Gas | Oxygen/O2 Gas Detector | ||||
| Detection range |
0~ 1ppm 0~ 10ppm 0~100ppm 0~1000ppm 0~ 5000ppm 0~ 50000ppm 0~ 100000ppm 0~ 200 mg/L 0~ 100%LEL 0~ 20%VoL 0~ 50%Vol 0~ 100%Vol Other ranges can be customized |
||||
| Resolution |
0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.001% Vol Other ranges can be customized |
||||
| Detection principle |
Electrochemical, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment, and user demand, The sensor can be customized |
||||
| Sensor service life |
Electrochemical principle: 2 ~ 3 years; Infrared principle: 5 ~ 10 years; Thermal conductivity: 5 years |
||||
| Allowable error | ≤±3% F.S (other or higher precision levels can be customized) | ||||
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular) | ||||
| Working voltage |
12 ~ 30VDC direct current the standard power supply for a single piece of equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A |
||||
| Power supply reference |
24V, 2.1A is possible to drive 40 units of toxic gas detector, or 15 units of flammable, infrared gas detector. |
||||
| Working method | Fixed type installation, online detection, diffusion type measurement | ||||
| Protection level | IP65 | ||||
| Explosion-proof mark | ExdⅡCT6, certificate number: CNEx15.1283 | ||||
| Exterior dimensions | 233×205×65mm (L×H×W) | ||||
| Weight | 1.0 Kg | ||||
| Standard accessories | Manual, qualification certificate, warranty card, outer packaging box | ||||
FEATURES & BENEFITS
APPLICATION
All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing, Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users, Ice Skating & Hockey Arenas, Cannabis & Hemp Oil, Breweries and so on.
