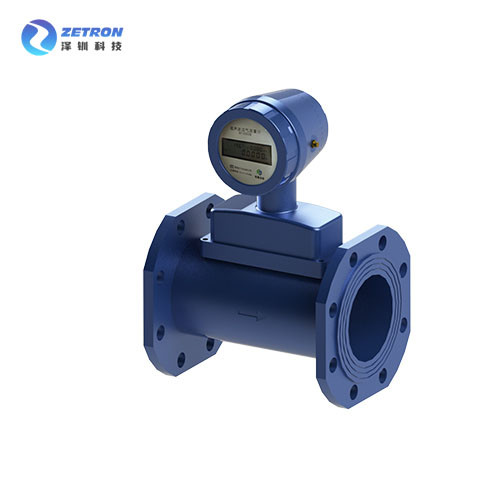

RS485 Biogas Fixed Gas Detector Bio Methane Gas Measurement Ultrasonic Gas Flowmeter

  • RS485 Biogas Fixed Gas Detector Bio Methane Gas Measurement Ultrasonic Gas Flowmeter
Place of Origin China
Brand Name Zetron
Certification CE, ISO13485, ISO9001
Model Number BF-3000B
Minimum Order Quantity 1
Delivery Time 3-7 days
Payment Terms T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability 1000 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Acurancy Range Class 1,5 Power Supply 220V
Communication RS485 Work Temperture -10-40℃
Name Ultrasonic Gas Flow Meter
High Light

RS485 Fixed Gas Detector

,

Biogas Fixed Gas Detector

,

Ultrasonic Gas Flowmeter
Leave a Message
Product Description

Ultrasonic Flow meter



OVERVIEW



BF-3000B Ultrasonic Gas Flowmeter is based on bypass measurement method, which can measure the flow rate of biogas, air, natural gas and other gases. In the bypass type flow meter, flow in the main line is inferred by measuring the flow in a small bypass line, it can effectively solve the problems such as moisture and sensor corrosion, and improve the measurement accuracy.



FEATURES



• No movable parts, no pressure drop.
• Unique methane content reading function.
• Ultrasonic technology, high precision, long lifetime.
• Combination of the pressure and ultrasonic transit time differential principle, the flow measurement of large pipeline available.
• No effect if installation and maintenance when the pipeline is working.
• Low power consumption. Battery can be used for more than 5 years.
• All-in-one detecting design, measure flow velocity, temperature, pressure and methane concentration directly.

SPECIFICATION



General Parameter
Applicable pipeline DN32 DN50 DN6O DN100 DN125 DN150 DN200 DN250 DN300

Flow range(m3/h)

Turn down ratio:200:1



 3-65 8-160 12-240 20-400 30-600 40-800 80-1600 120-2400 160-3200
Interface Convex flange
Accuracy range Class 1.5
CH4 composition Range 30-100%VOL, Accuracy+5%(optional)
Power supply

External power supply: Safety Barrier Ui=5V

Li=100mA(main power supply)
  Internal Battery: 3.6V LS26500(Backup Power Supply)
Communication RS485
Explosion levels ExibIlIAT4 Gb
Workdng Envronment
Work temperature 10 and 40 ℃
Humidity ≤99%
Woriding pressure 0-200kPa



APPLICATION



• Anaerobic Digester
• Biogas Flare
• Upgraded Bio-methane Gas
• Biogas Engine/CHP
