Fixed Online CH4 Methane Gas Detector Large Capacity Data Storage For Chemical Industry

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC600
Minimum Order Quantity 1 piece
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Gas Detector Warranty 12 Month
Customized Support OEM, ODM, OBM Gas Unit PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l.
Certification CE Model Number MIC 600
Size 210*170*85mm (L*H*W) Weight 1.8(kg)
High Light

MIC600 CH4 Methane Gas Detector

,

Fixed Online CH4 Methane Gas Detector

,

MIC600 Online Gas Detector

Leave a Message
Product Description

MIC600 Online Composite Toxic and Harmful Gas Detector



OVERVIEW


MIC600 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high CH4 levels in the working environment.

Simple to install service and calibrate, MIC600 requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant. It has been is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.
Simple calibration procedure.
Easily integrated into a control system

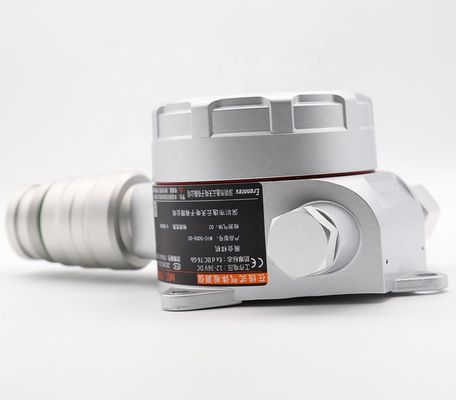

Fixed Online CH4 Methane Gas Detector Large Capacity Data Storage For Chemical Industry 0



Gas CH4 (Methane) Range

0-50000PPM; 0-100%LEL ; 0-100%Vol.

other ranges can be customized

Size 210×170×85mm (L×H×W) Weight 1.8 Kg
Installation method

Pipeline Type

Wall Mounting Type

Display 2.5-inch high-definition color screen
Environment

Temperature: -40 ℃ ~ + 70 ℃

Humidity: ≤10 ~ 95% RH (regular)

Approvals IP66; Exd Ⅱ CT6
Accessories Manual, qualification certificate, warranty card, outer packaging box
Optional items

Alarms;Wireless Transmission;Pretreatment System; SD Card;

Temperature and Humidity Measurement;

Accessory for connection with computer for monitoring.

Installation Type Accessories

(Optional configuration)

Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),

vacuum pump (sampling distance is 40 m),

24V switching power supply, pressure reducing valve, flow meters



FEATURES



Gases to be detected

Arbitrary combination of multiple types of gases such as toxic gases, oxygen gas, carbon dioxide, flammable and explosive gases,TVOC, and so on.
*Optional configuration: it is possible to simultaneously detect any 1 ~ 6 gases .



Rich human-machine interface

2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on.



Large-capacity Data Storage

Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration.



Temperature and Humidity

Temperature: -40 ℃ ~ + 120 ℃,
Accuracy: 0.3 ℃
Humidity: 0-100% RH,
Accuracy: 3% RH



Multiple Alarm Modes

The default option is 1-way, and it is possible to select 3-way passive contact (dry contact) output, level III alarm, and the alarm point can be set. Field sound & light alarm (optional configuration).



Wireless Transmission

Optional function is possible to transfer data wirelessly to the cell phone, remote monitoring center, monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize the functions of data analysis, storage, printing
or the like on the computer.

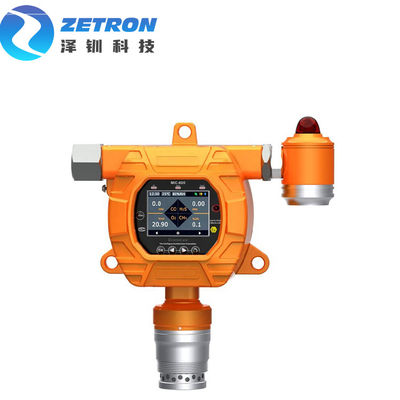

Fixed Online CH4 Methane Gas Detector Large Capacity Data Storage For Chemical Industry 1

APPLICATION



All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas and so on.



Fixed Online CH4 Methane Gas Detector Large Capacity Data Storage For Chemical Industry 2
