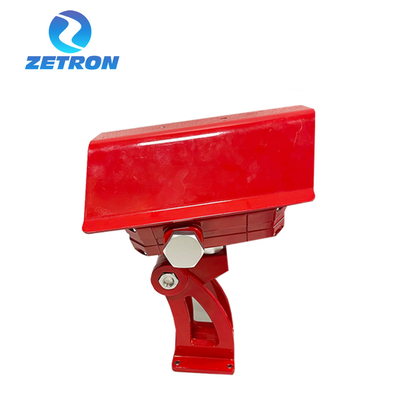

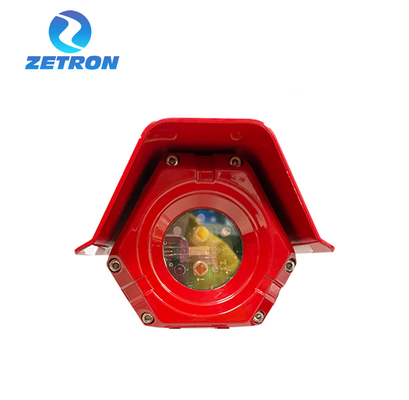

MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type

  • MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type
  • MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type
  • MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type
Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200-UV/IR2
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Infrared Flammable Gas Detector Gas Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
IR Sensor 4 Response Spectral Range 4-6um
Viewing Angle Range 90 ° Output RS485,4~20mA
Humidity ≤95% RH Protection Grade IP66
Highlight

uv open path gas detection

,

ir2 open path gas detection

,

methane open path infrared gas detector
Leave a Message
Product Description

MIC200-UV/IR2 Infrared Flammable Gas Detector

OVERVIEW



The 3-band infrared flame detector Built-in high-performance microprocessor. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains three narrowband infrared sensors (4-6 µm) and an optical filter, which is sensitive to the CO2 emission spectrum (4.4 µm). Easy installation, detection angle can be adjusted 360 °



MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 0

MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 1MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 2MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 3

MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 4



SPECIFICATION



Response spectral range
4-5um
Viewing angle range
90 °
Detection distance
30--50 meter (depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Explosion-proof grade
EXdⅡCT6
Protection grade
IP66
Signal output 4~20mA three-wire system output
Dimensions
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof



FEATURES & BENEFITS
  • Double bandpass filters that fully compensate for all types of fog, rain and mist interference
  • Higher power and more robust design telescope
  • Optional Modbus RS485 multi-drop output
  • Radially symmetrical and bonded window heating delivers good low-temperature performance
  • Coaxial optics delivers best in class performance and resilience to partial obscuration
  • Fully temperature compensated solid-state detectors
  • Low power consumption in all conditions
  • FM hazardous area and performance Approved
  • ExdII CT6 explosion-proof grade, suitable for zone 1 and zone 2 hazardous locations
APPLICATION



• Offshore platforms & vessels (FPSO’s)

• Downstream chemical processing plants

• Large storage areas & buildings
• Gas transport and pipelines
• Perimeter detection



MIC200-UV / IR2 Open Path Gas Detection 3 Wavelength Point Type 5
