Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM

Place of Origin China
Brand Name Zetron
Certification CE
Model Number MIC200
Minimum Order Quantity 1 piece
Price USD 500-- 3000/set
Packaging Details paper carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Infrared UV Flammable Gas Detector Gas Methane, Ethane, Propane, Butane, Pentane, Ethylene, Propylene, Butadiene
IR Sensor 4 Response Spectral Range 4-6um
Viewing Angle Range 90 ° Output RS485,4~20mA
Humidity ≤95% RH Protection Grade IP66
High Light

mic 200 open path infrared gas detector

,

flammable open path infrared gas detector

,

co2 open path infrared gas detector

Leave a Message
Product Description

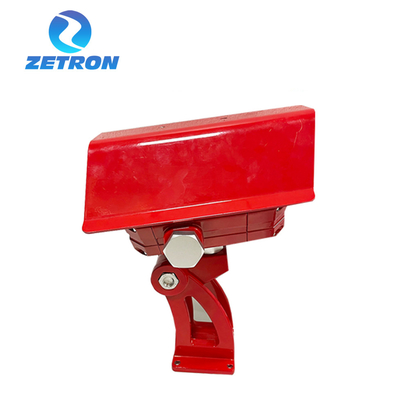

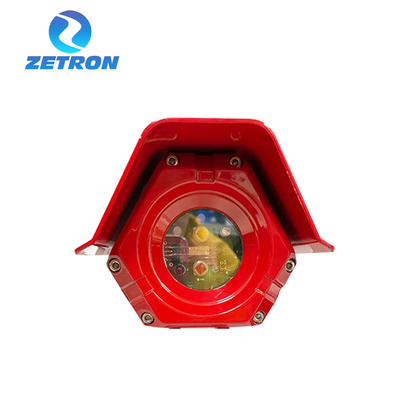

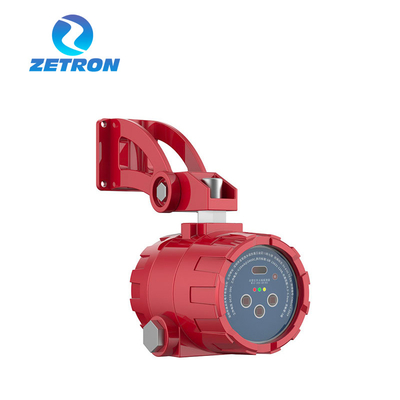

MIC200 Infrared Flammable Gas Detector

OVERVIEW



The 3-band infrared flame detector is a high-quality and reliable flame detector that uses advanced flame analysis and identification technology. It responds quickly to infrared radiation in fires and has the highest immunity to false alarms. The detector contains three narrowband infrared sensors (4-6 µm) and an optical filter, which is sensitive to the CO2 emission spectrum (4.4 µm). It has a high sensitivity, which can effectively eliminate interference and achieve effective flame detection at a longer distance.

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 0

Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 1Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 2Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 3Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 4





SPECIFICATION



Response spectral range
4-5um
Response time
5--10s The response time of different media is different
Viewing angle range
90 °
Detection distance
30--50 meter (depends on the burning material)
Ambient temperature
-10 ~ 55 ℃
Environmental humidity
≤95% RH
Pressure range
86 ~ 106Kpa
Working voltage DC24V
Working current current≤25mA, alarm current≤35mA
Executive standard GB15631-2008, GB3836- 2000 series
Explosion-proof grade
EXdⅡCT6
Protection grade
IP66
Signal output 4~20mA three-wire system output
Installation method wall or ceiling
Cable outlet thread 20mmX1.5mm free conversion G1 / 2 optional
Dimensions
19*16*11 cm
Shell material
aluminum alloy, surface anticorrosive paint sprayed
Weight 1.7 Kg
Advantages dustproof, explosion-proof, corrosion-proof



FEATURES & BENEFITS



* Developed by the principle of three-wavelength infrared detection, it is highly immune to false positives.
* High-speed response to fire;
* Built-in high-performance microprocessor;
* Excellent anti-radio frequency and electromagnetic interference performance;
* Reliable system fault self-diagnosis function;
* Three-wire current ring and relay are optional;
* Patent signal processing algorithms to minimize the possibility of false positives;
* Multi-level sensitivity settings to meet different needs in more situations;
* Easy to install, with a detection angle of 360 degrees.
* Exd II CT6 explosion-proof grade, suitable for hazardous sites in zones 1 and 2.



APPLICATION



• Offshore platforms & vessels (FPSO’s)

• Downstream chemical processing plants
• Gas transport and pipelines
• Large storage areas & buildings
• Perimeter detection



Mic-200 Flammable Open Path Infrared Gas Detector Co2 Emission Spectrum 4.4 µM 5
